Transfer Flow 109 Gallon Refueling Tank System with 12V Pump, DOT
Transfer Flow 109 Gallon Refueling Tank System with 12V Pump, DOT

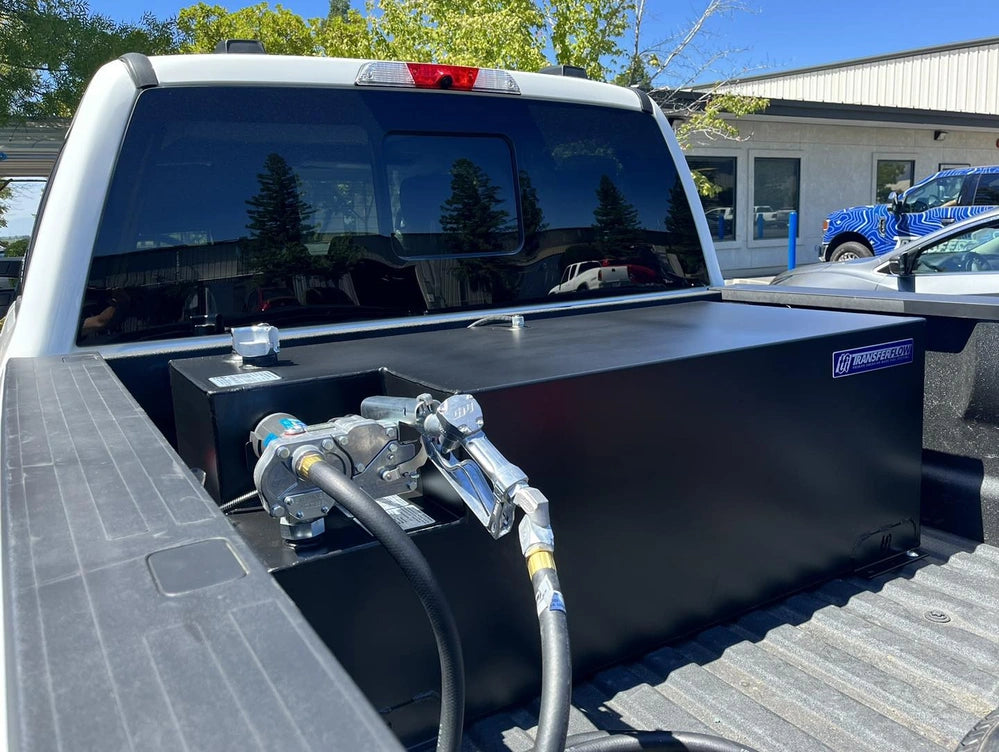

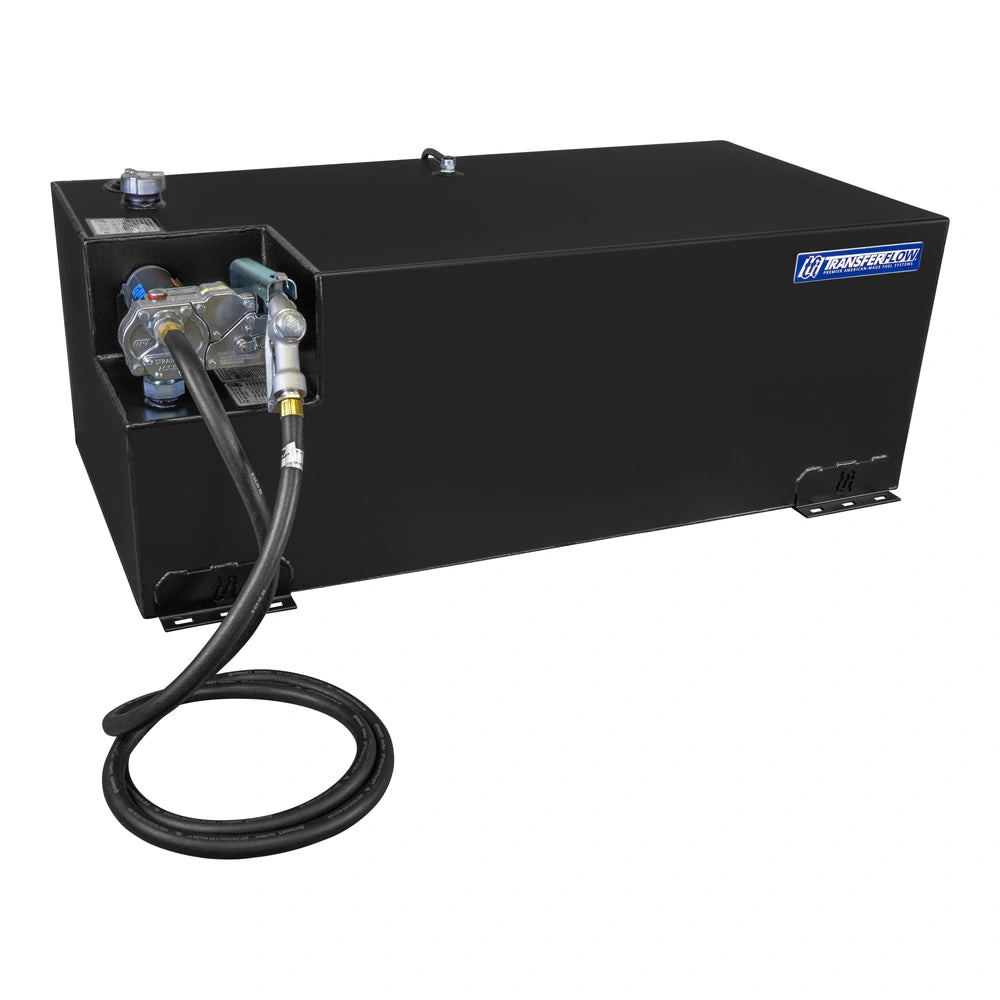

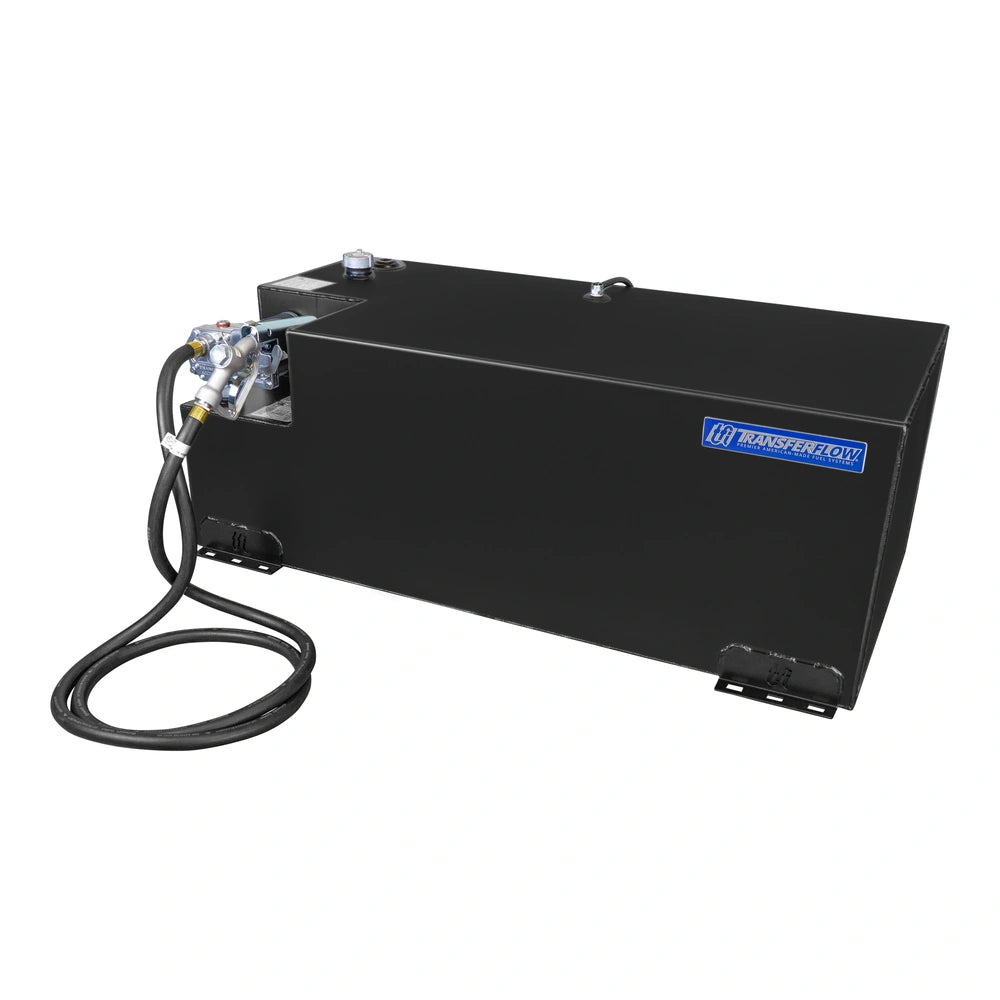

The Transfer Flow 109 gallon refueling tank system is an in-bed transfer tank with its own 12V pump, built for long-bed full-size pickups. Fleets, farms and contractors use it to bring fuel to equipment and vehicles away from the shop. It comes as a complete system with pump, hose, nozzle and wiring.
Key features
- High-yield 12 and 14 gauge U.S. aluminized steel with a satin black powder coat
- Transfer Flow states it is DOT-approved for gasoline, diesel and kerosene, with a published DOT special permit

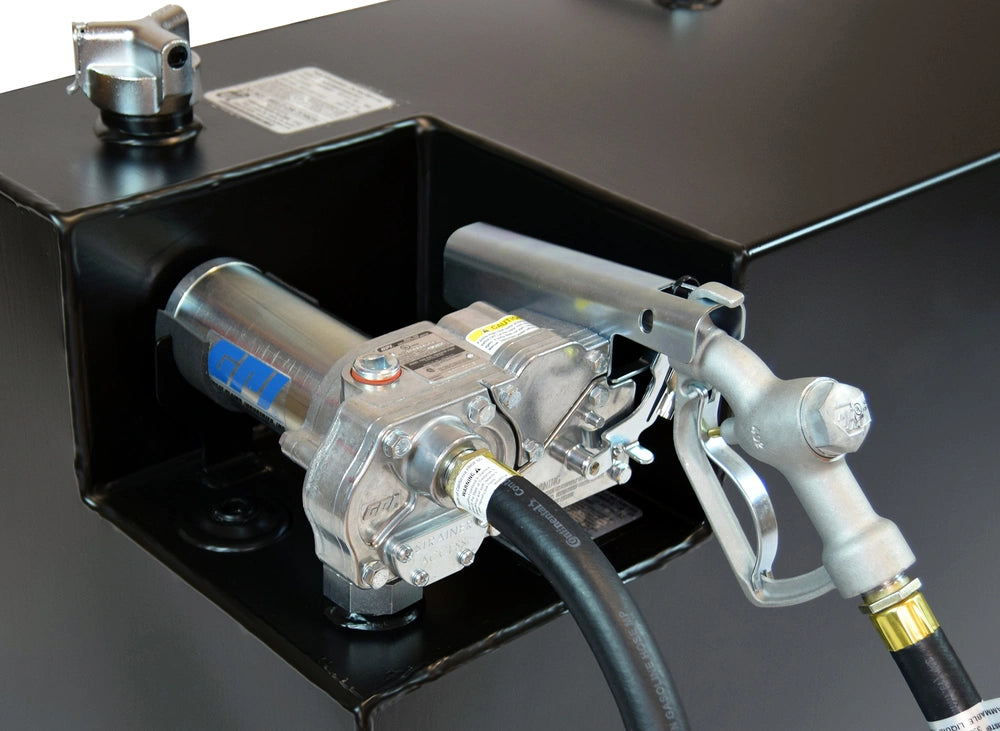

- 12V GPI pump delivers up to 15 GPM through a 12 ft hose and nozzle
- Hose purge feature returns fuel left in the hose to the tank
- Baffled interior cuts down on fuel sloshing

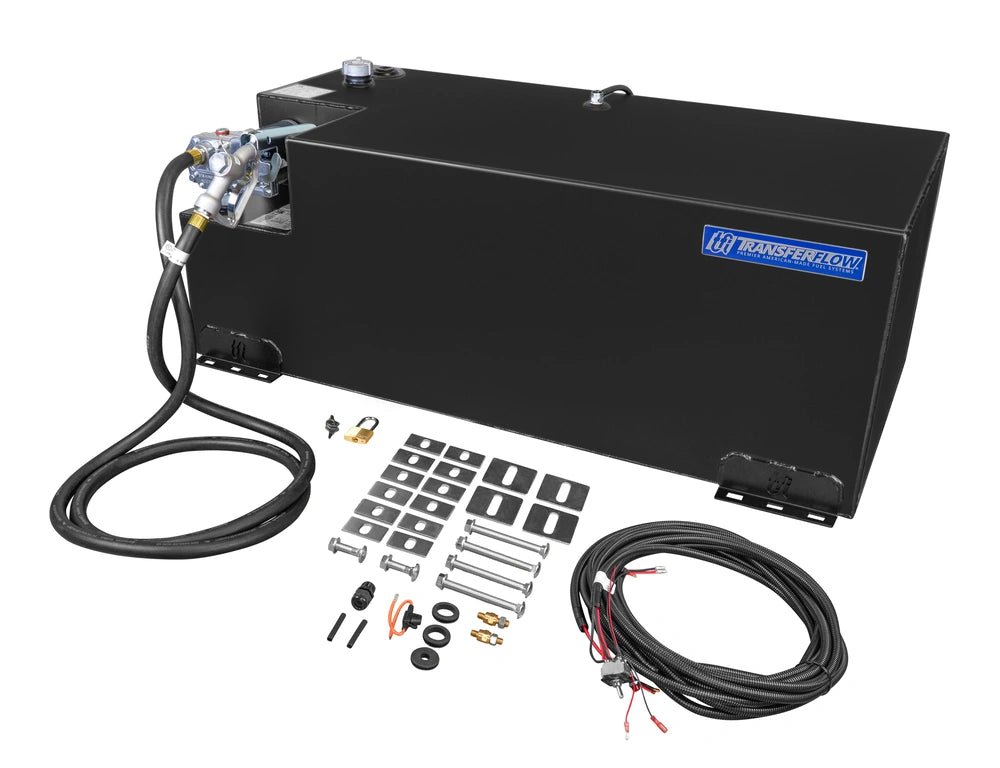

- Cab-mounted switch, fuel cap and mounting hardware included
Good to know
Listed for full-size trucks with a long bed. An in-tank fuel gauge is available separately. Made in the USA from American-made steel and covered by a 6-year, unlimited-mile warranty. Ships by LTL freight.
Specifications
| Brand | Transfer Flow |
|---|---|
| Model / part number | 0800109416 |
| Capacity | 109 gallons |
| Listings and approvals | DOT special permit |
| For use with | Gasoline, Diesel, Kerosene |
| Style | Rectangular transfer |
| Material | Aluminized steel |
| Steel gauge | 12 and 14 ga |
| Dimensions | 54.75 x 30 x 22.625 in |
| Weight | 297 lb |
| Pump included | Yes |
| Pump power | 12V DC |
| Flow rate | 15 GPM |
| Hose length | 12 ft |
| DOT compliant | Yes |
| Vehicle fit | Full-size trucks, long bed |
| Made in USA | Yes |
| Warranty | 6-year, unlimited-mile warranty |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
