Onken 500 Gallon Double Wall Used Oil Tank, UL-142
Onken 500 Gallon Double Wall Used Oil Tank, UL-142

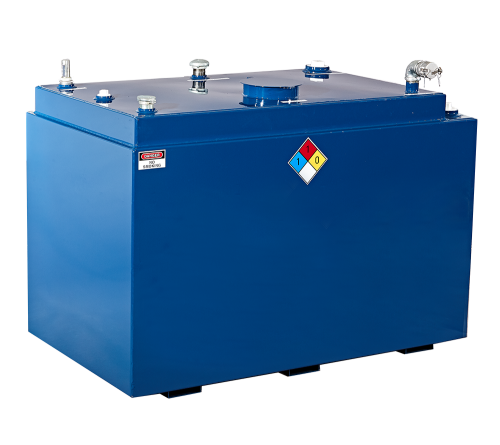

The Onken 500 gallon double wall used oil tank is a stationary bulk tank for high-volume repair shops, fleet garages and quick lube centers. Its 10 gauge steel outer wall gives 110% containment of the inner tank. Drained oil goes in through a wide pour area, and pump trucks connect to a 2 in camlock suction tube.
Key features
- UL-142 listed for flammable liquids and NFPA 30 compliant
- Robot welded 10 gauge steel, pressure tested

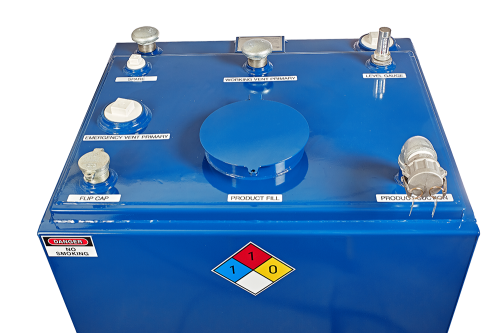

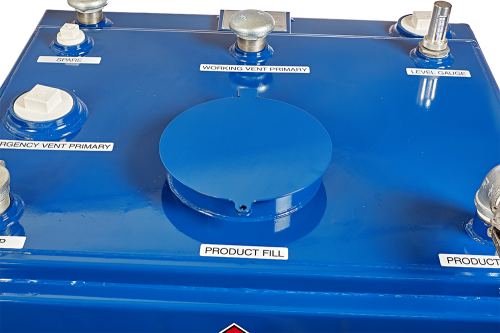

- 10 in pour area and 2 in suction tube with camlock fitting

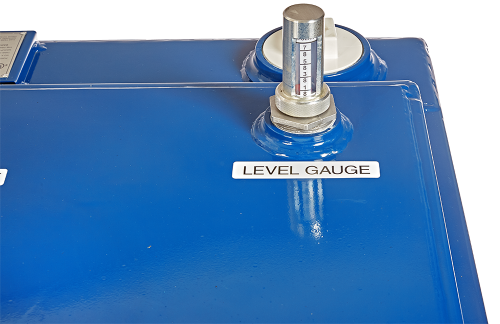

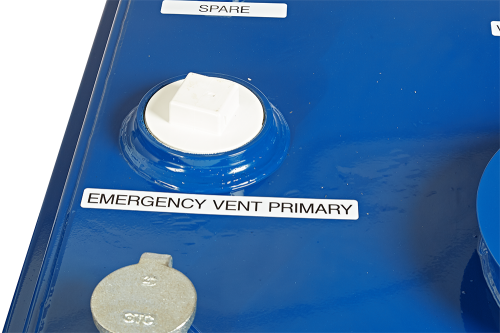

- Fluid level gauge and 2 in mushroom vent
- Durable powder coat finish
- 42 x 73 x 52 in, about 1,450 lb
Good to know
The tank arrives assembled with the fittings and decals shown. Casters are not offered on the 500 gallon size; a drain pan is available separately. It ships by truck freight. Check local fire code for used oil storage at your site.
Specifications
| Brand | Onken |
|---|---|
| Model / part number | TB2239 |
| Capacity | 500 gallons |
| Wall type | Double wall |
| Listings and approvals | UL-142, NFPA 30 compliant |
| For use with | Used oil |
| Style | Rectangular |
| Material | Steel |
| Steel gauge | 10 ga |
| Dimensions | 42 x 73 x 52 in |
| Weight | 1,450 lb |
| Pump included | No |
| Warranty | 1-year limited warranty against manufacturing defects |
| Ships from | Illinois |
| Lead time | 1-3 weeks |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Ships from Illinois. Lead time is 1-3 weeks. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
