Newberry 550 Gallon Fireguard Fuel Tank, UL-2085
Newberry 550 Gallon Fireguard Fuel Tank, UL-2085

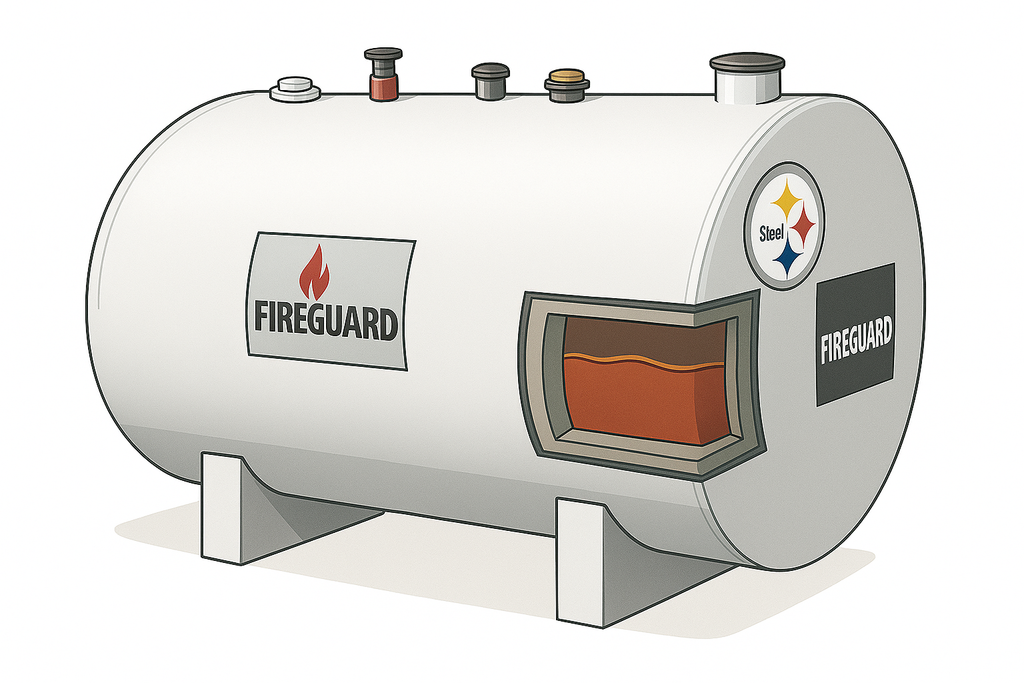

The Newberry Fireguard 550 gallon tank is a fire-protected aboveground fuel tank listed to UL-2085 and built to the STI F941 Fireguard standard. It is meant for fleets, municipal sites and facilities where local code calls for protected tank storage. Insulation between the two steel walls keeps the stored fuel below a safe temperature during a pool fire, for a two-hour rating.
Key features
- Listed to UL-2085 and built to UL-142 and STI F941
- Fire, hose stream and impact tested as a complete assembly
- Insulated double wall with an interstitial space for leak monitoring
- 48 in diameter x 72 in long primary tank, about 84 x 54 x 54 in outside
- 10 gauge steel, approx. 3,350 lb
- Optional vents, gauges, pumps, coatings and ballistic resistance
Good to know
Pump, emergency vents and fill equipment are sold separately. At about 3,350 lb, the tank needs a forklift on site to unload. Newberry designs it for installations under NFPA 30, NFPA 30A or the International Fire Code; confirm requirements with your local fire official.
Specifications
| Brand | Newberry |
|---|---|
| Model / part number | NB00550FGD048 |
| Capacity | 550 gallons |
| Wall type | Insulated double wall |
| Listings and approvals | UL-2085, UL-142, STI F941 Fireguard |
| For use with | Diesel, Gasoline, Biodiesel |
| Style | Saddle |
| Material | Carbon steel |
| Steel gauge | 10 ga |
| Dimensions | 84 x 54 x 54 in |
| Weight | 3,350 lb |
| Pump included | No |
| Warranty | 1-year limited warranty |
| Ships from | Arkansas |
| Lead time | 3-5 weeks |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Ships from Arkansas. Lead time is 3-5 weeks. Plan for a forklift or similar equipment to unload it. Need several units or a delivered quote? Request a quote.
