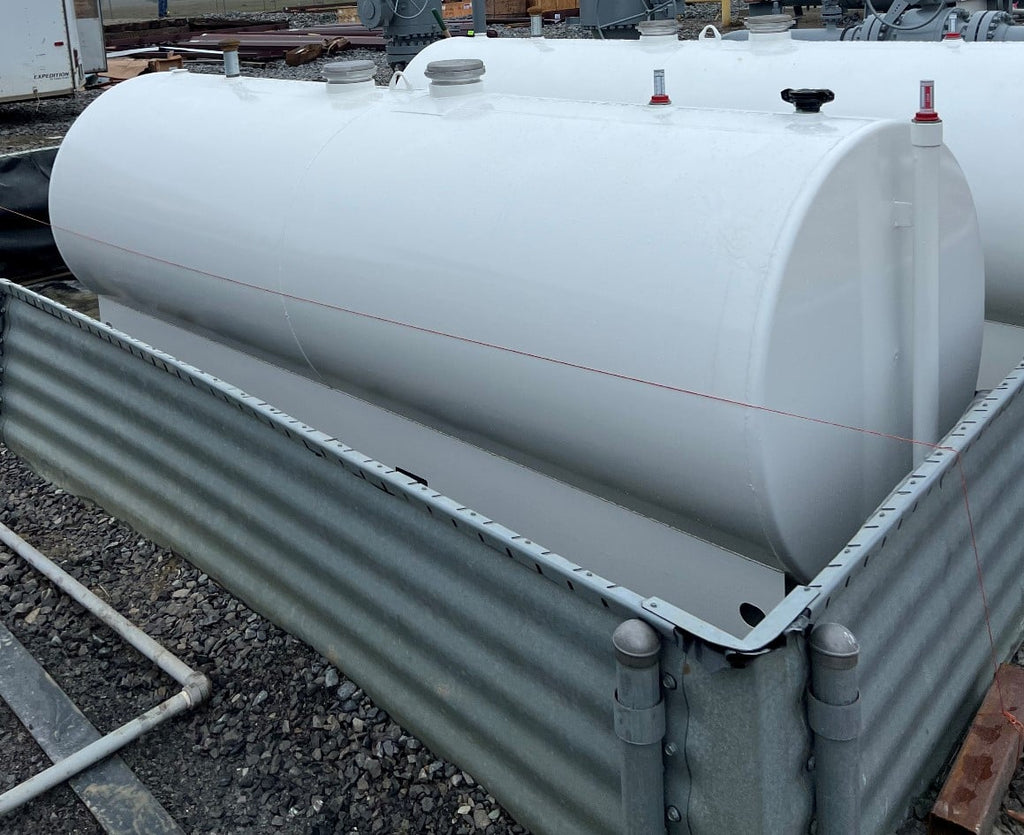

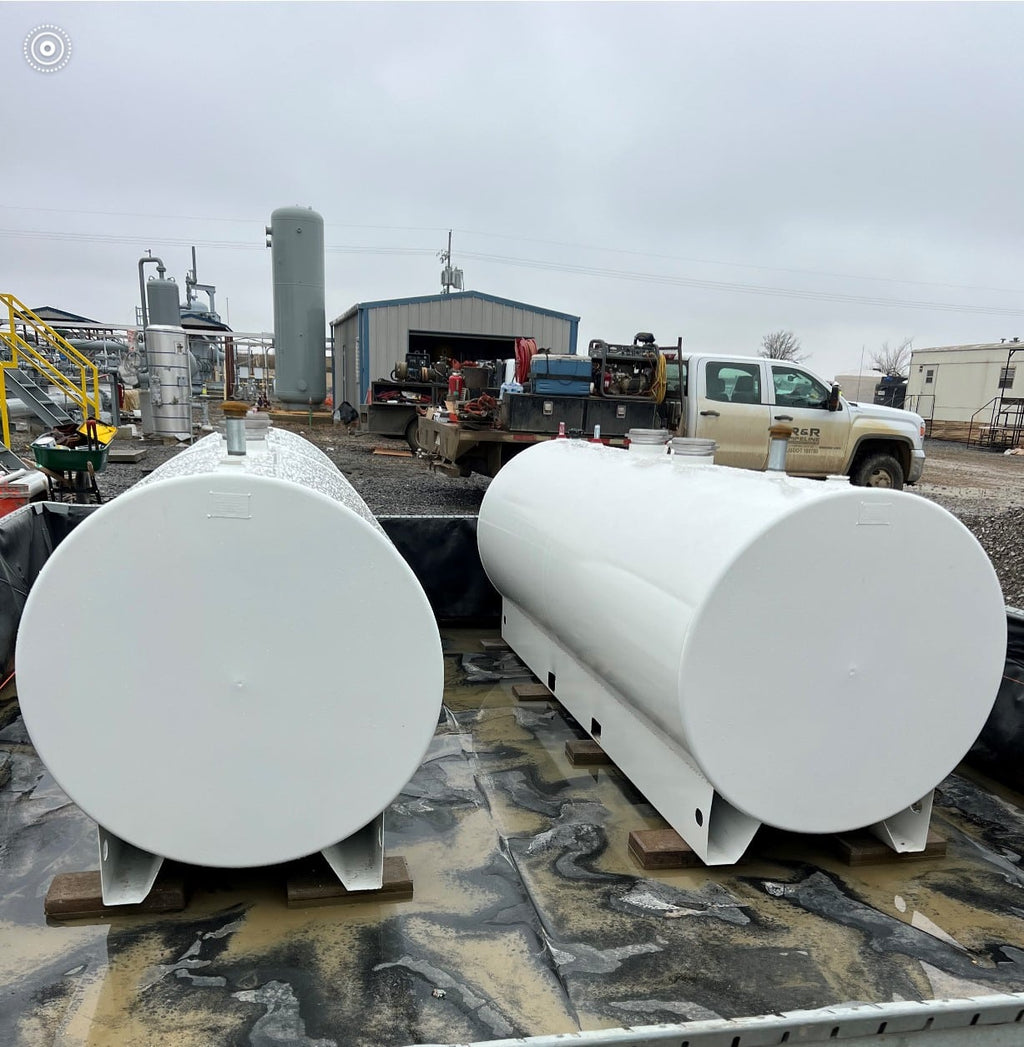

Newberry 550 Gallon Double Wall Skid Fuel Tank, UL-142
Newberry 550 Gallon Double Wall Skid Fuel Tank, UL-142
The Newberry 550 gallon double wall skid tank is a mid-size UL-142 fuel tank for fleets, construction yards, farms and standby generators. A second steel wall around the primary tank provides secondary containment in one unit, and the skid base keeps installation simple. The tank is built from hot-rolled carbon steel.
Key features
- Built and labeled per UL-142 for aboveground flammable and combustible liquids
- 48 in diameter x 72 in long inner tank in 12 gauge carbon steel
- Approx. 925 lb empty weight per Newberry's spec sheet
- 4 in NPT emergency vent openings for the primary and secondary tanks
- 2 in NPT openings for interstitial monitoring and accessories
- Ships in gray primer, with optional colors and coatings
Good to know
Pump, emergency vents, fill cap and gauges are sold separately. The tank ships by LTL freight, and liftgate delivery is available. Check local fire code and permit rules before installing a fuel tank.
Specifications
| Brand | Newberry |
|---|---|
| Model / part number | NB00550DWS04812G |
| Capacity | 550 gallons |
| Wall type | Double wall |
| Listings and approvals | UL-142 |
| For use with | Diesel, Gasoline |
| Style | Skid |
| Material | Carbon steel |
| Steel gauge | 12 ga |
| Dimensions | 72 x 48 x 48 in |
| Weight | 925 lb |
| Pump included | No |
| Warranty | 1-year limited warranty |
| Ships from | Tennessee |
| Lead time | 3-5 weeks |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Ships from Tennessee. Lead time is 3-5 weeks. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
