Newberry 300 Gallon Fireguard Fuel Tank, UL-2085
Newberry 300 Gallon Fireguard Fuel Tank, UL-2085

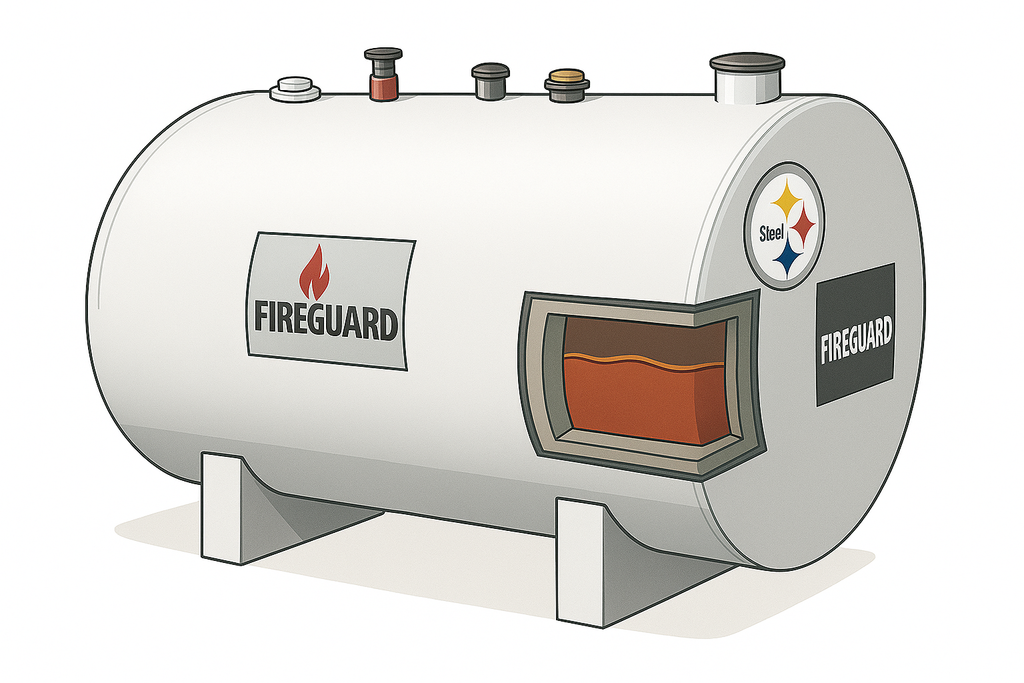

The Newberry Fireguard 300 gallon tank is a fire-protected aboveground fuel tank listed to UL-2085 and built to the STI F941 Fireguard standard. It is meant for fleets, municipal sites and facilities where local code calls for protected tank storage. Insulation between the two steel walls keeps the stored fuel below a safe temperature during a pool fire, for a two-hour rating.
Key features
- Listed to UL-2085 and built to UL-142 and STI F941
- Tested as an assembly for fire, hose stream and impact
- Insulated double wall; the interstitial space can be monitored for leaks
- 38 in diameter x 60 in long primary tank, about 72 x 50 x 50 in outside
- 10 gauge steel, approx. 2,700 lb
- Options include emergency vents, gauges, pumps, coatings and ballistic resistance
Good to know
Pump, emergency vents and fill equipment are sold separately. At about 2,700 lb, the tank needs a forklift on site to unload. Newberry designs it for installations under NFPA 30, NFPA 30A or the International Fire Code; confirm requirements with your local fire official.
Specifications
| Brand | Newberry |
|---|---|
| Model / part number | NB00300FGD038 |
| Capacity | 300 gallons |
| Wall type | Insulated double wall |
| Listings and approvals | UL-2085, UL-142, STI F941 Fireguard |
| For use with | Diesel, Gasoline, Biodiesel |
| Style | Saddle |
| Material | Carbon steel |
| Steel gauge | 10 ga |
| Dimensions | 72 x 50 x 50 in |
| Weight | 2,700 lb |
| Pump included | No |
| Warranty | 1-year limited warranty |
| Ships from | Arkansas |
| Lead time | 3-5 weeks |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Ships from Arkansas. Lead time is 3-5 weeks. Plan for a forklift or similar equipment to unload it. Need several units or a delivered quote? Request a quote.
