Newberry 300 Gallon Double Wall Skid Fuel Tank, UL-142
Newberry 300 Gallon Double Wall Skid Fuel Tank, UL-142

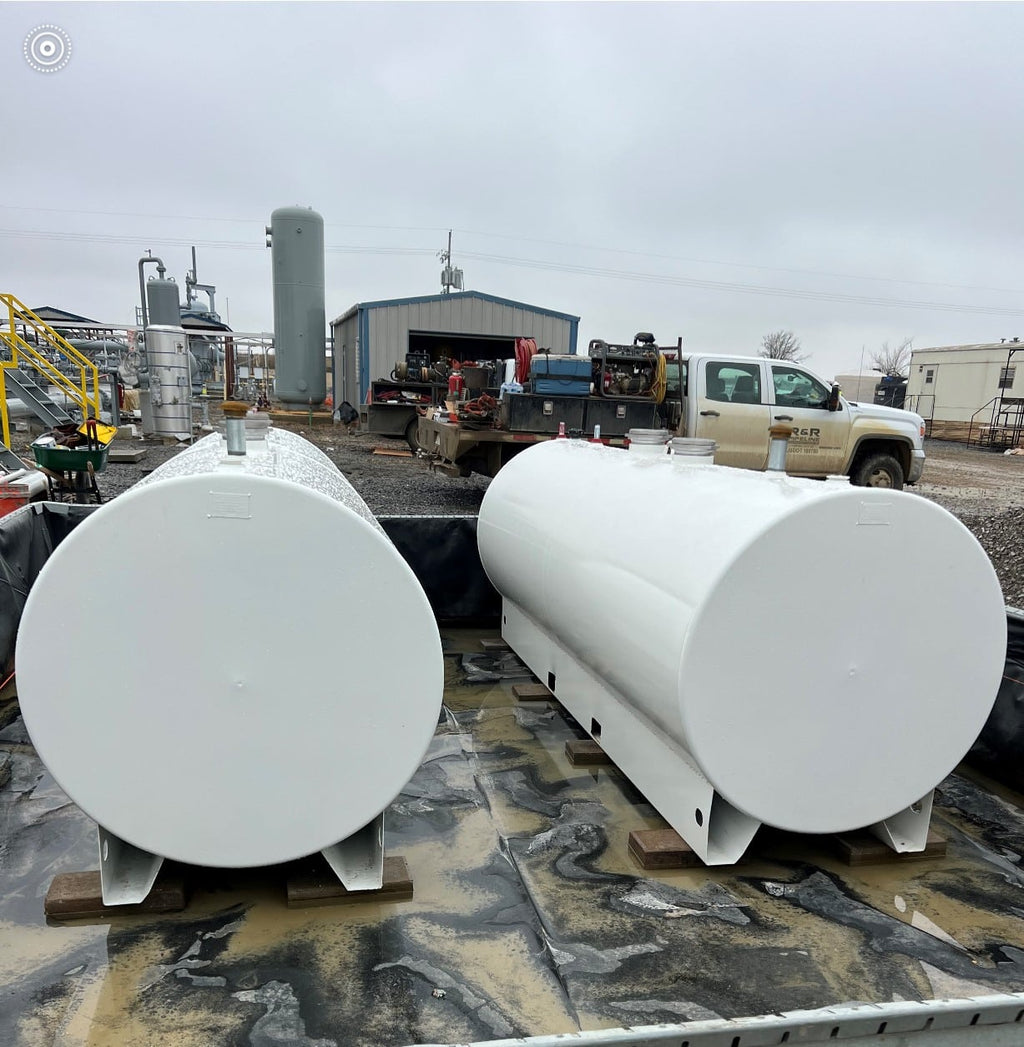

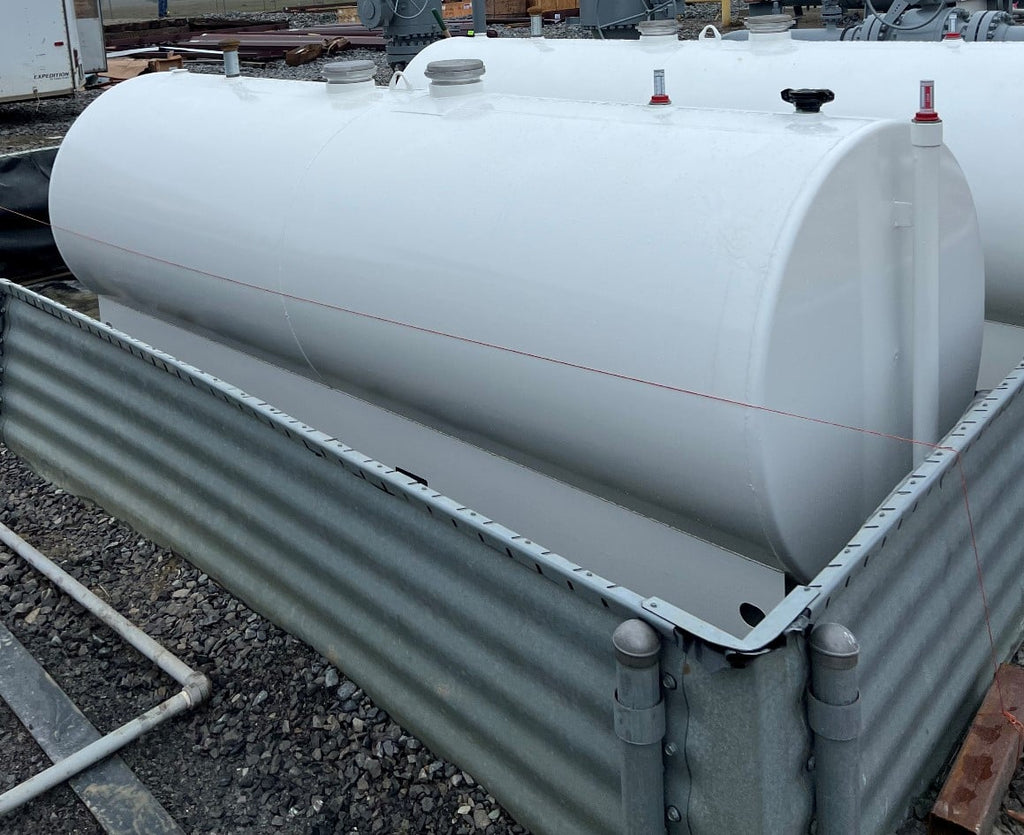

The Newberry 300 gallon double wall skid tank gives fleets, contractors and farms a UL-142 tank for on-site diesel or gasoline storage. The outer steel wall acts as secondary containment, and the skid base sets the tank on a level pad without extra supports. Newberry builds it from hot-rolled carbon steel.
Key features
- UL-142 built and labeled for aboveground storage of flammable and combustible liquids
- Double wall carbon steel construction for secondary containment
- 38 in diameter x 60 in long inner tank, 12 gauge steel
- Approx. 670 lb empty weight per Newberry's spec sheet
- 3 in NPT emergency vent openings for the primary and secondary tanks
- 2 in NPT port for interstitial monitoring; gray primer standard with optional paint colors
Good to know
Pump, emergency vents, fill cap and gauges are sold separately. The tank ships by LTL freight, and liftgate delivery is available. Check local fire code and permit rules before installing a fuel tank.
Specifications
| Brand | Newberry |
|---|---|
| Model / part number | NB00300DWS03812G |
| Capacity | 300 gallons |
| Wall type | Double wall |
| Listings and approvals | UL-142 |
| For use with | Diesel, Gasoline |
| Style | Skid |
| Material | Carbon steel |
| Steel gauge | 12 ga |
| Dimensions | 60 x 38 x 38 in |
| Weight | 670 lb |
| Pump included | No |
| Warranty | 1-year limited warranty |
| Ships from | Tennessee |
| Lead time | 3-5 weeks |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Ships from Tennessee. Lead time is 3-5 weeks. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
