Newberry 2000 Gallon Double Wall Vertical Fuel Tank, UL-142
Newberry 2000 Gallon Double Wall Vertical Fuel Tank, UL-142

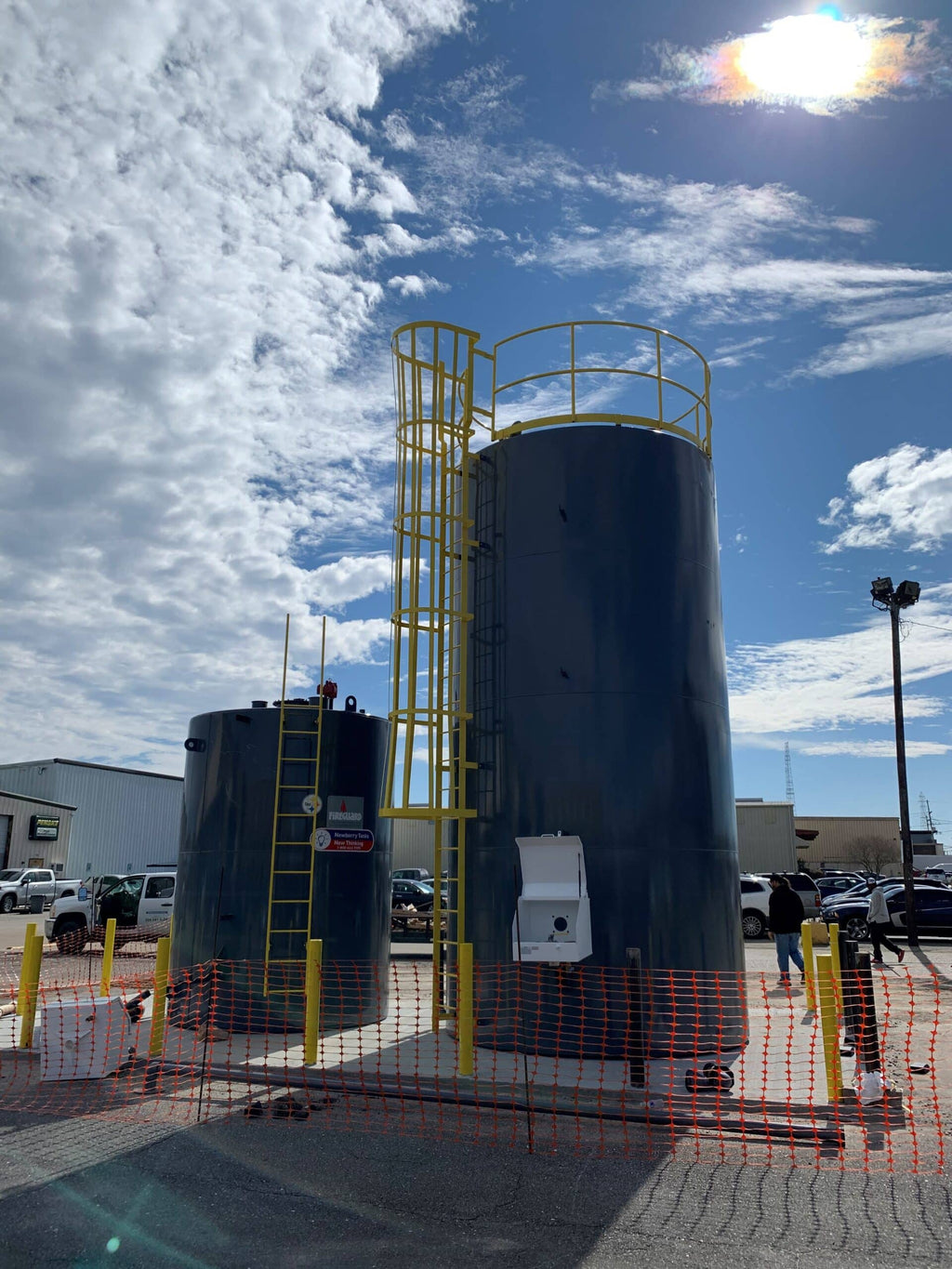

The Newberry 2,000 gallon double wall vertical tank stores diesel or gasoline upright, so it takes less pad space than a horizontal tank of the same capacity. It fits fleet yards, municipal facilities and generator sites where room is tight. The double wall steel shell is built to UL-142 and provides secondary containment. It ships in one coat of gray primer, with top coats available on order.
Key features
- Built and labeled per UL-142
- 64 in diameter x 12 ft shell height in hot-rolled carbon steel
- Approx. 3,750 lb empty weight
- 20 in UL manway
- 6 in NPT emergency vent openings for the primary and secondary tanks
- Lifting lugs for handling, with a cone roof available as an option
Good to know

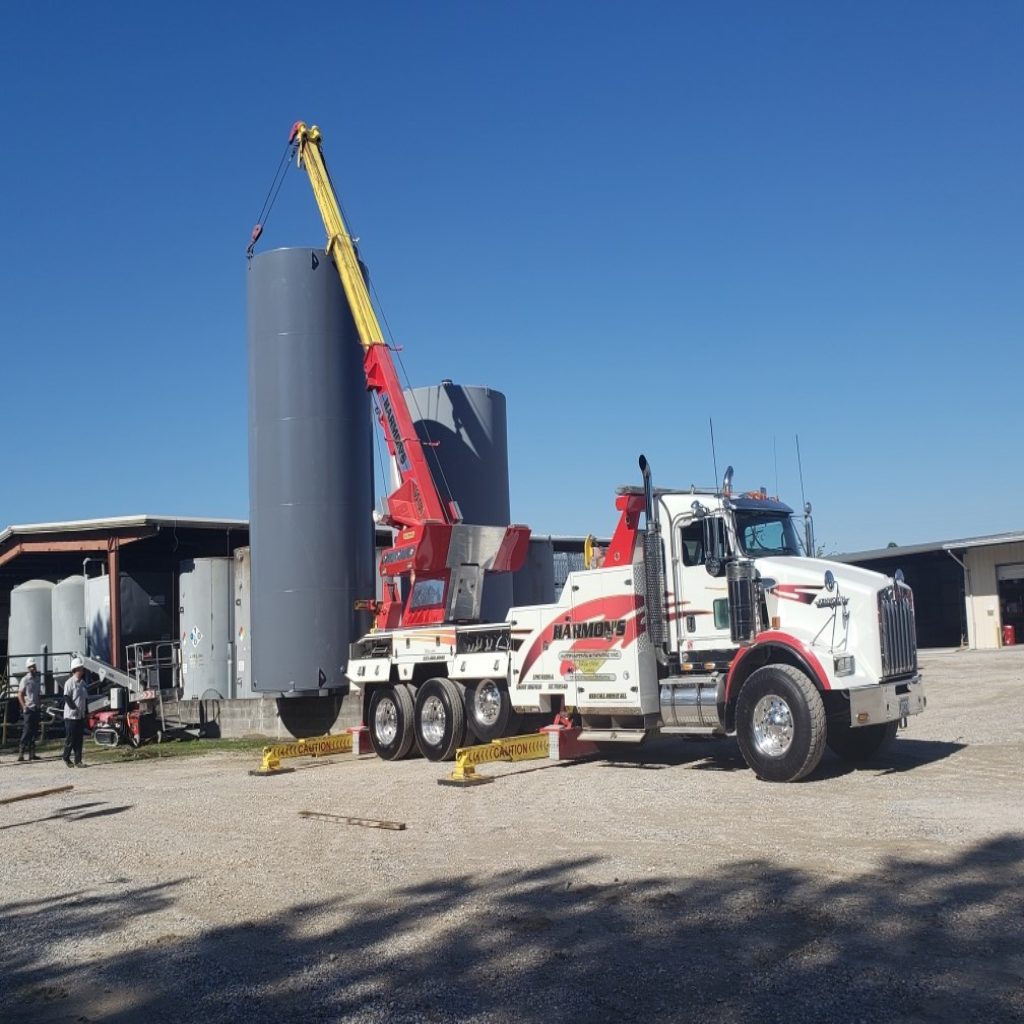

Pumps, vents, gauges and fill equipment are sold separately. The tank ships by freight and needs a forklift or crane on site to unload and set. Check local fire code and permit rules before installation.
Specifications
| Brand | Newberry |
|---|---|
| Model / part number | NB02000DWV06407G |
| Capacity | 2,000 gallons |
| Wall type | Double wall |
| Listings and approvals | UL-142 |
| For use with | Diesel, Gasoline |
| Style | Vertical |
| Material | Carbon steel |
| Dimensions | 64 x 64 x 144 in |
| Weight | 3,750 lb |
| Pump included | No |
| Warranty | 1-year limited warranty |
| Ships from | Arkansas |
| Lead time | 3-5 weeks |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Ships from Arkansas. Lead time is 3-5 weeks. Plan for a forklift or similar equipment to unload it. Need several units or a delivered quote? Request a quote.
