Morrison 2 in Overfill Prevention Valve for Above-Ground Tanks, EVR
Morrison 2 in Overfill Prevention Valve for Above-Ground Tanks, EVR

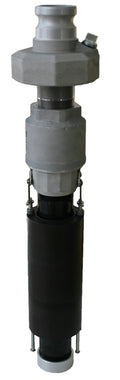

The Morrison Bros. 9095AA overfill prevention valve stops flow into an aboveground storage tank when the liquid reaches the set level during a pressurized fill. This version has a 2 in female thread inlet and a 4 in female thread tank connection, and it carries CARB EVR approval. It suits remote fill systems at fleet, municipal and backup power sites.
Key features
- Passivated aluminum body with stainless steel shaft, linkage and hardware
- Installs on a 4 in riser or a top-mounted spill container
- Minimum shut-off height of 2 in from the tank top, with 2.35 in of float adjustment
- Full flow to the shut-off point with cushioned closure
- Integral pressure relief and anti-siphon
- Rated about 230 GPM at a 10 PSI pressure drop, 5 to 100 PSI operating range
Good to know
UL 2583 listed. Morrison lists compliance with NFPA 30 and 30A, IFC and PEI RP200 and RP600. For clean liquids only. Requires a tight fill connection. The drop tube adaptor accepts a 2 in drop fill tube, sold separately.
Specifications
| Brand | Morrison Bros |
|---|---|
| Model / part number | 9095AA3200AVEVR |
| Listings and approvals | UL 2583, CARB EVR |
| Style | Accessory |
| Material | Aluminum |
| Flow rate | 230 GPM |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Need several units or a delivered quote? Request a quote.
