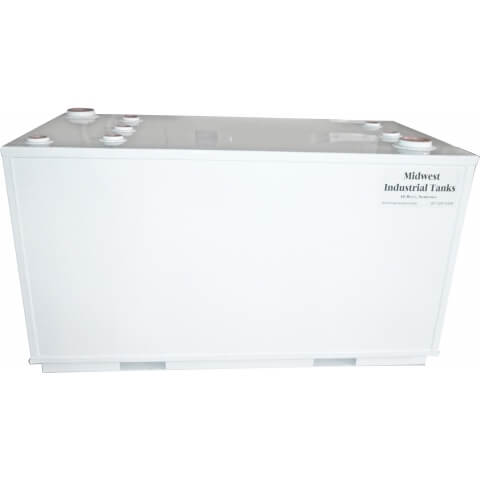

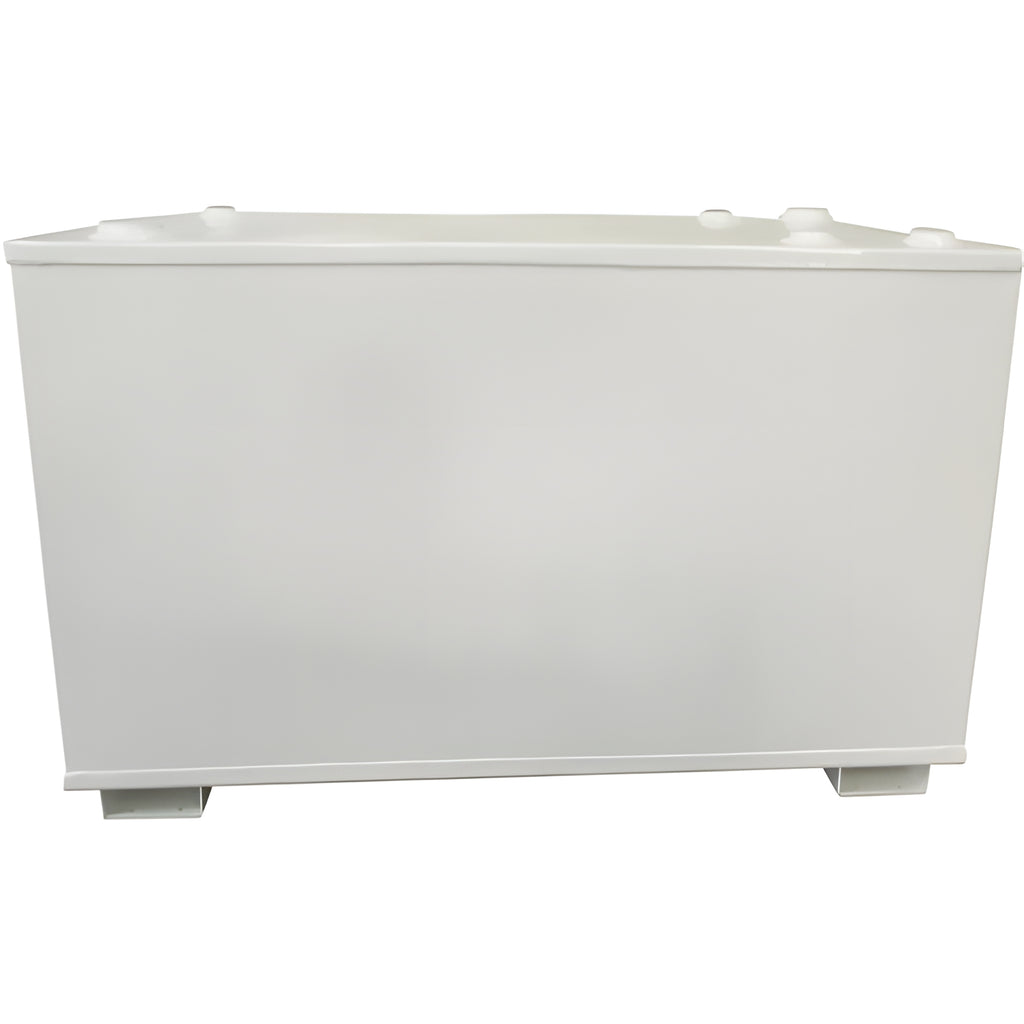

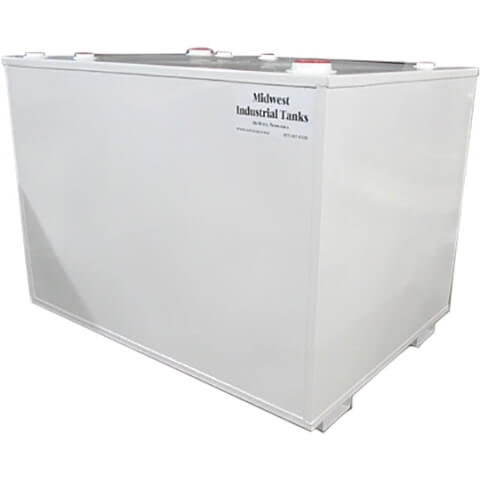

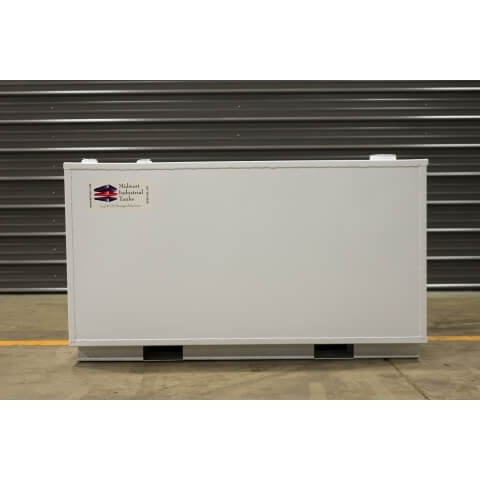

Midwest Industrial Tanks 500 Gallon Double Wall Fuel Tank, UL-142
Midwest Industrial Tanks 500 Gallon Double Wall Fuel Tank, UL-142
The Midwest Industrial Tanks 500 gallon double wall tank is sized for fleets, contractors and facilities that refuel equipment on site or back up a generator. Its clamshell build places a 10 gauge carbon steel inner tank inside a 12 gauge outer tank that can hold the full contents. The maker states this meets SPCC rules, so you do not need a separate containment tank.
Key features
- UL-142 listed for diesel or gasoline storage
- Ports on both tanks with heavy forged steel flanges for vents, fill ports and pumps
- 2 in inlet and 2 in outlet
- White powder coat over a phosphate base coat for corrosion protection
- Built-in fork pockets for placement
- 71 x 47 x 51 in, about 1,420 lb empty
Good to know
Fittings and pump equipment are sold separately: a fittings package with emergency vents, gauges and a lockable fuel cap, plus 12V DC or 115V AC pump packages and a mechanical meter. The tank ships by truck freight. Check local fire code before you install a fuel tank.
Specifications
| Brand | Midwest Industrial Tanks |
|---|---|
| Model / part number | RTD-CC-500 |
| Capacity | 500 gallons |
| Wall type | Double wall |
| Listings and approvals | UL-142 |
| For use with | Diesel, Gasoline |
| Style | Rectangular |
| Material | Carbon steel |
| Steel gauge | 10 ga inner, 12 ga outer |
| Dimensions | 71 x 47 x 51 in |
| Weight | 1,420 lb |
| Pump included | No |
| Warranty | 1-year limited warranty |
| Ships from | Nebraska |
| Lead time | 8 weeks |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Ships from Nebraska. Lead time is 8 weeks. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
