Midwest Industrial Tanks 50 Gallon Double Wall Fuel Tank, UL-142
Midwest Industrial Tanks 50 Gallon Double Wall Fuel Tank, UL-142

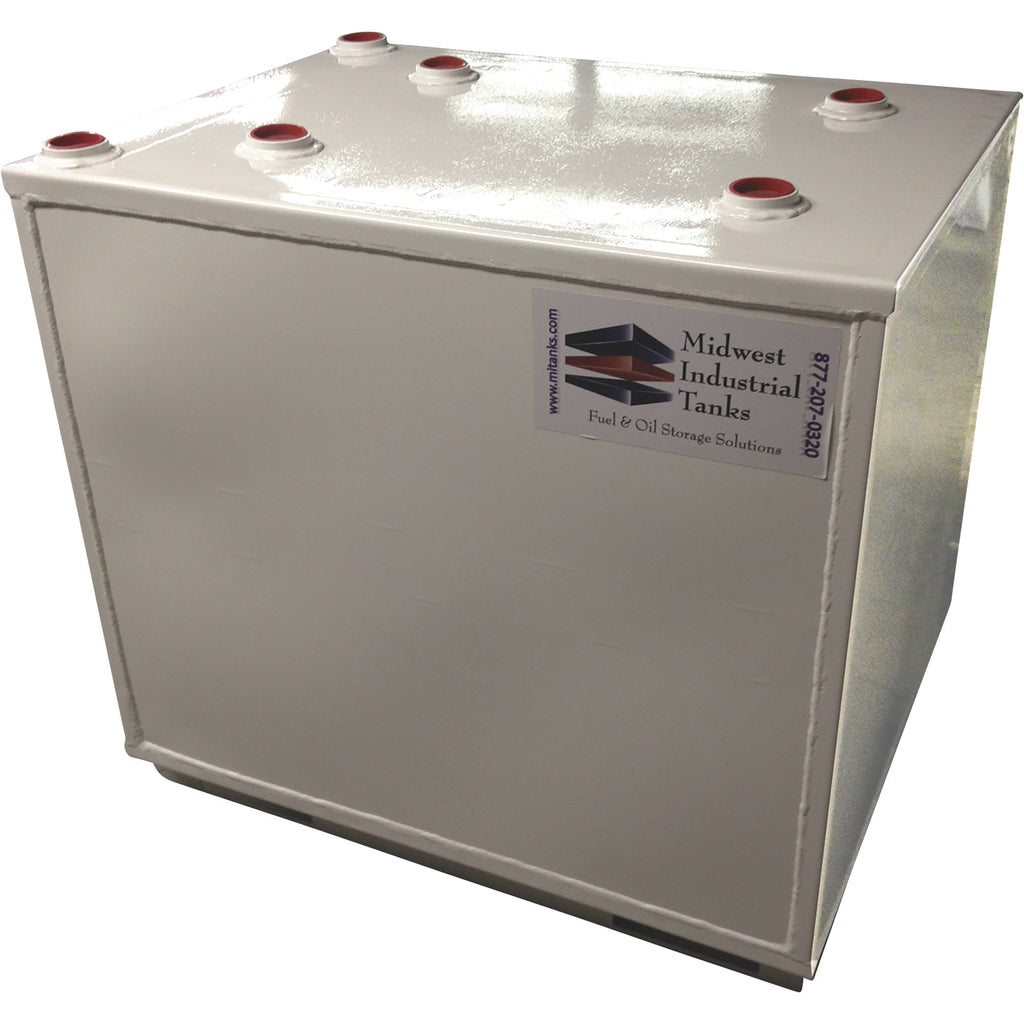

The Midwest Industrial Tanks 50 gallon double wall tank gives small fleets, shops and backup generator sites a compact way to store diesel or gasoline. A 12 gauge carbon steel outer shell fully encloses the 10 gauge inner tank in a clamshell layout. The maker states this design meets SPCC rules without a separate secondary containment tank.
Key features
- UL-142 listed double wall carbon steel construction

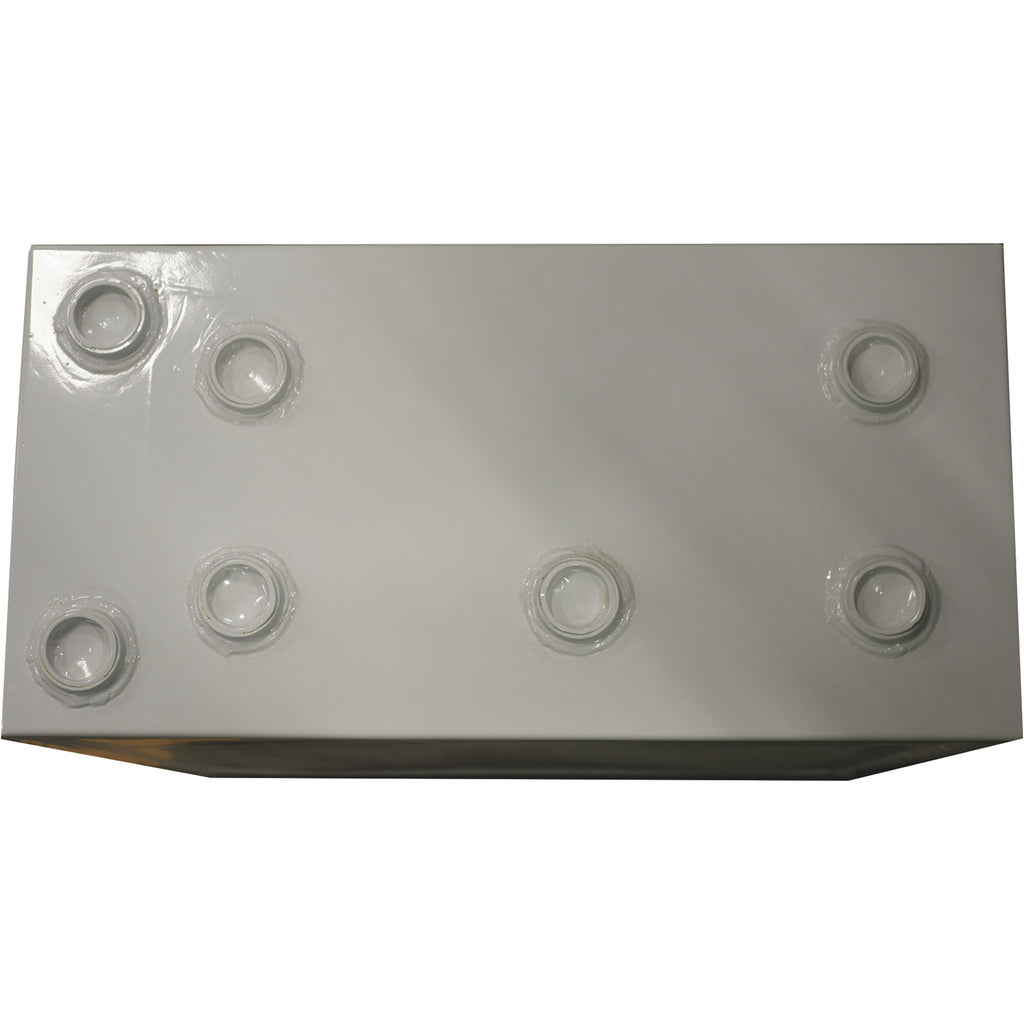

- Ports on both the inner and outer tank: (2) 3 in NPT and (5) 2 in NPT
- 2 in inlet and 2 in outlet on heavy forged steel port flanges
- White powder coat applied over a phosphate pretreatment to fight corrosion

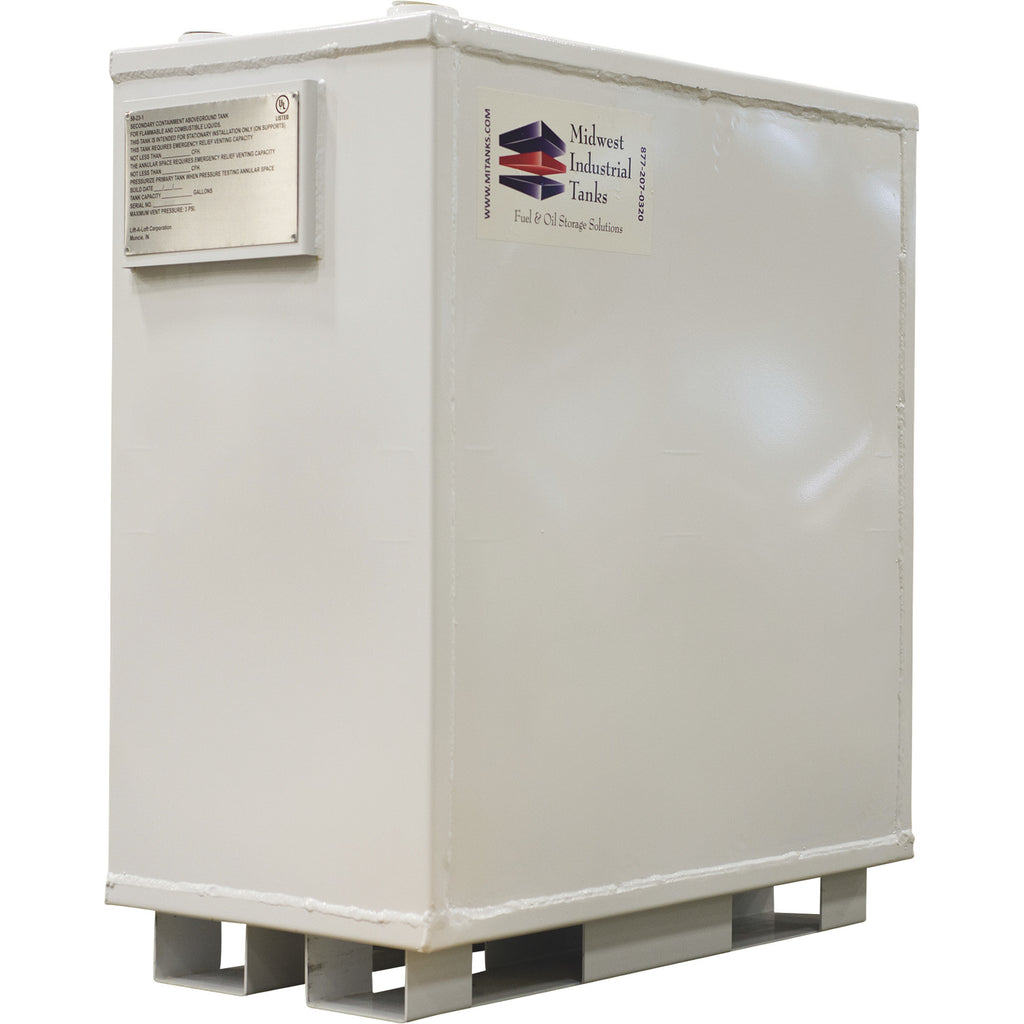

- Built-in fork pockets for setting the tank in place
- Small 37 x 19 x 40 in footprint at about 370 lb empty
Good to know
The tank is sold bare. Emergency vents, level and leak gauges, a lockable venting fuel cap, pump kits and a mechanical meter are available separately. It ships by truck freight. Check local fire code and your site's spill plan before installing a gasoline or diesel tank.
Specifications
| Brand | Midwest Industrial Tanks |
|---|---|
| Model / part number | RTD-CC-50 |
| Capacity | 50 gallons |
| Wall type | Double wall |
| Listings and approvals | UL-142 |
| For use with | Diesel, Gasoline |
| Style | Rectangular |
| Material | Carbon steel |
| Steel gauge | 10 ga inner, 12 ga outer |
| Dimensions | 37 x 19 x 40 in |
| Weight | 370 lb |
| Pump included | No |
| Warranty | 1-year limited warranty |
| Ships from | Nebraska |
| Lead time | 8 weeks |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Ships from Nebraska. Lead time is 8 weeks. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
