JohnDow 500 Gallon Used Oil Storage System with Air Pump
JohnDow 500 Gallon Used Oil Storage System with Air Pump

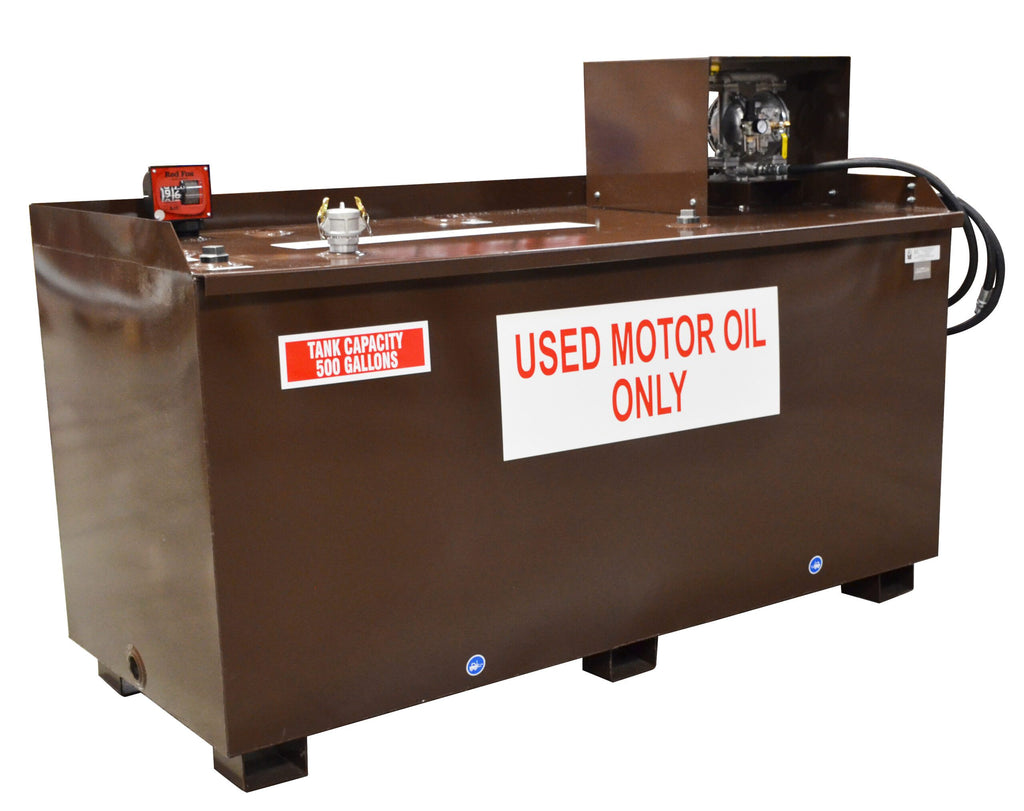

The JohnDow AGS-500D is the largest system in the AGS used oil line, with a 500 gallon double wall steel tank in a low workbench layout. It is sized for high-volume quick lube centers, dealerships and fleet maintenance shops that collect a lot of used oil every week. An air diaphragm pump pulls oil from drains into the tank and stops on its own when it is full.
Key features
- 500 gallon double wall steel tank, UL listed to UL 142, with 110% secondary containment

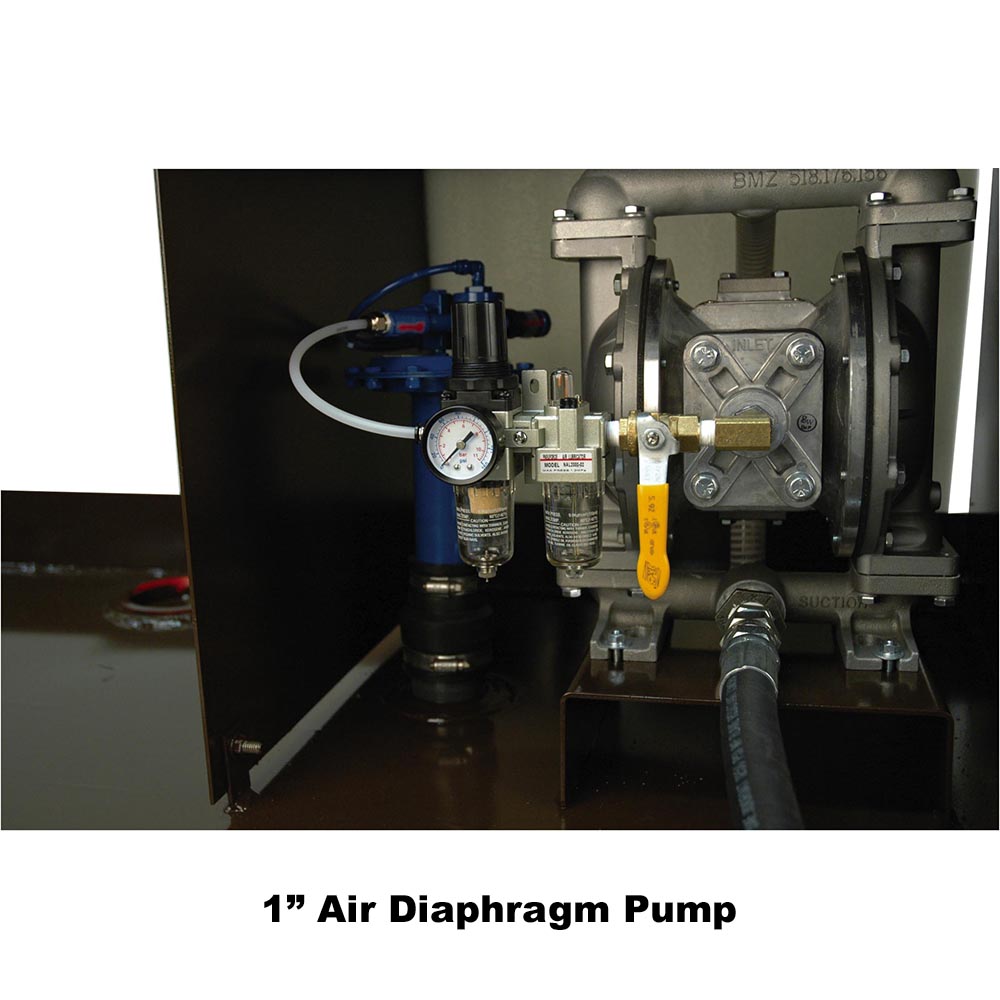

- UL listed 1 inch air-operated diaphragm pump, 30 GPM

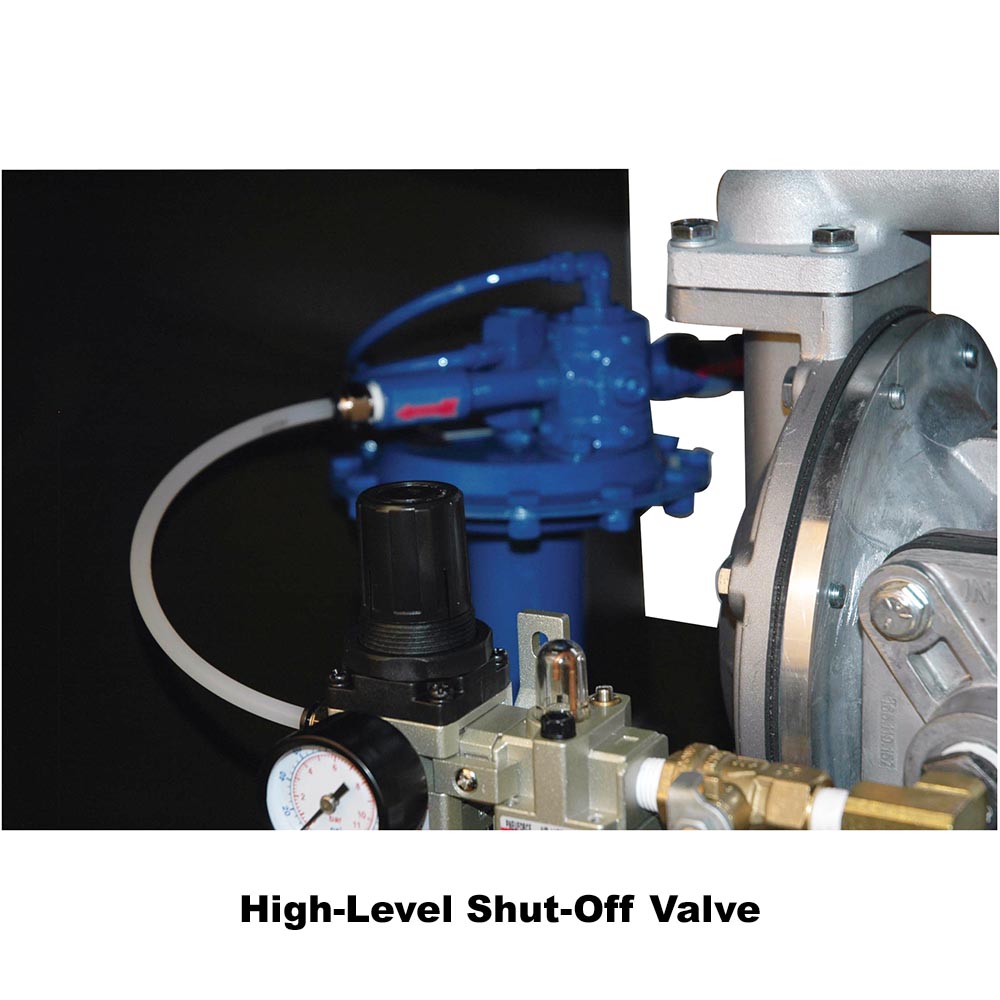

- Automatic pump shut-off guards against overfilling
- 3/4 inch x 10 ft suction hose with quick-connect coupler

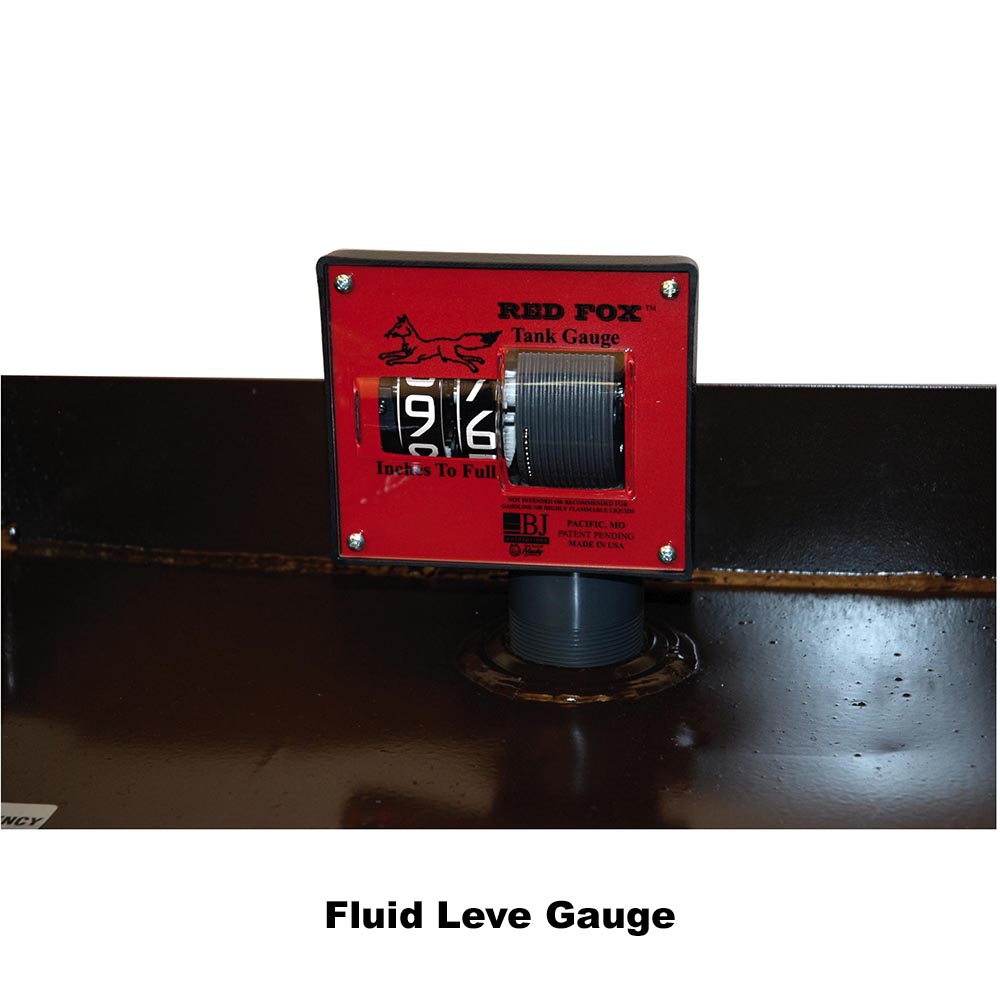

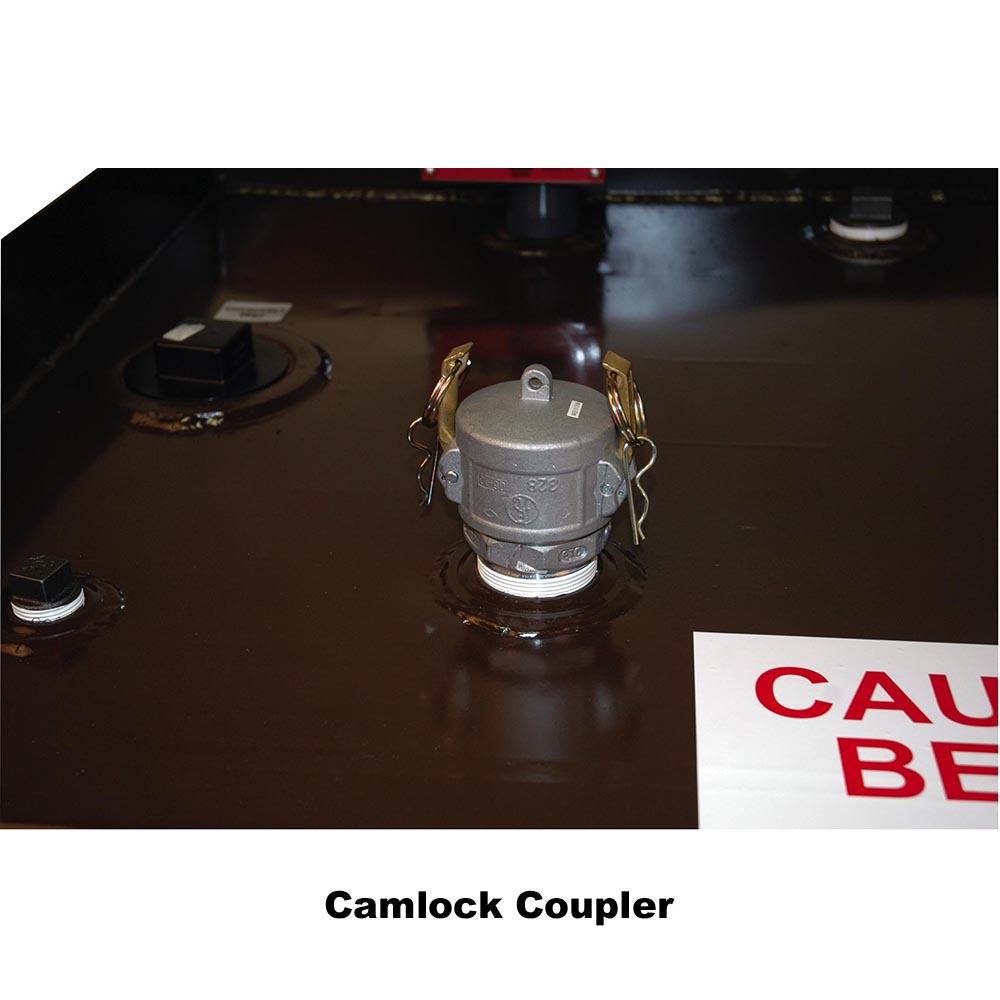

- 2 inch camlock drop tube with dust cover, level gauge and air filter/regulator
- Protective cover over the pump and shut-off valve, high-gloss enamel finish
Good to know
The system includes the pump, hoses and fittings. It measures about 89 x 49 x 40 in and weighs about 1,300 lb, so it ships by LTL freight and needs a forklift or pallet jack to place. Check local permit and fire code rules for used oil storage before you install.
Specifications
| Brand | JohnDow Industries |
|---|---|
| Model / part number | AGS-500D |
| Capacity | 500 gallons |
| Wall type | Double wall |
| Listings and approvals | UL-142 |
| For use with | Used oil |
| Style | Rectangular |
| Material | Steel |
| Dimensions | 89 x 49 x 40 in |
| Weight | 1,300 lb |
| Pump included | Yes |
| Pump power | Air |
| Flow rate | 30 GPM |
| Hose length | 10 ft |
| Lead time | 21 business days |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Lead time is 21 business days. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
