JohnDow 180 Gallon Used Oil Storage System with Air Pump
JohnDow 180 Gallon Used Oil Storage System with Air Pump

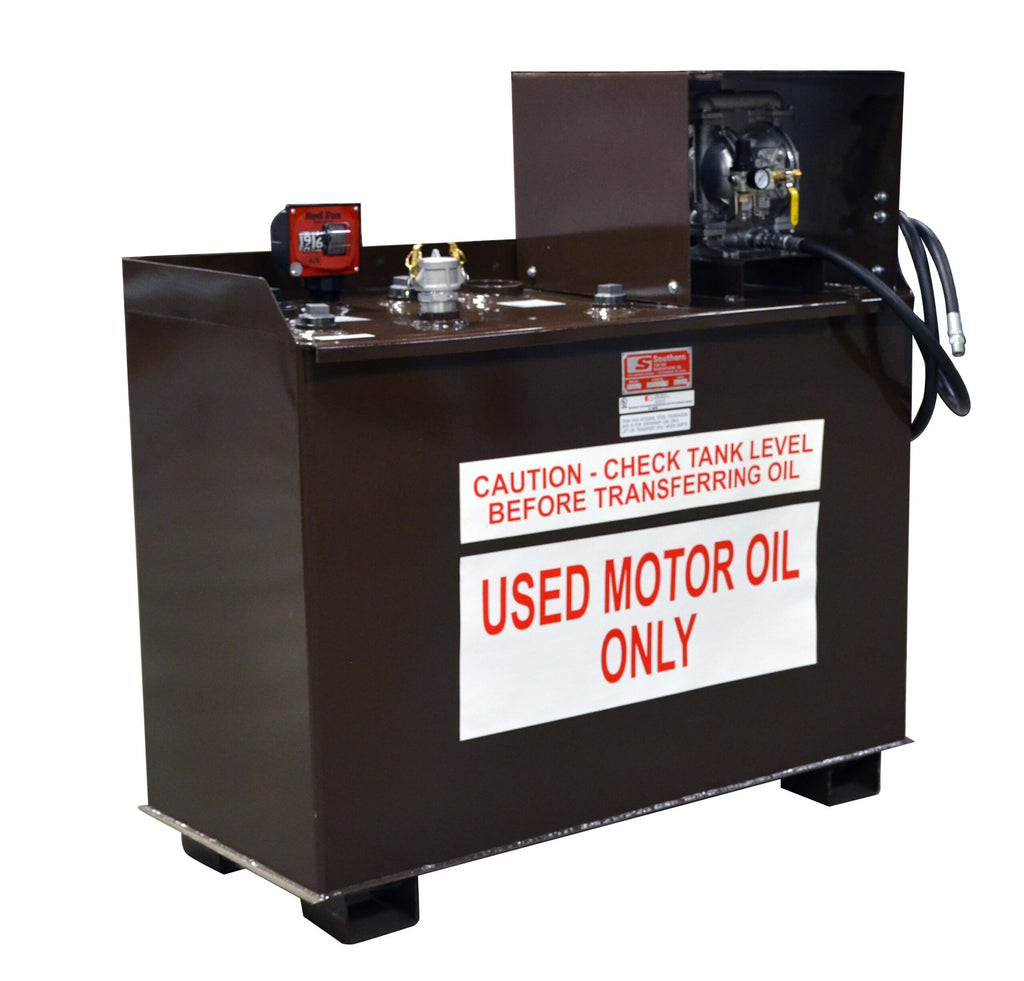

The JohnDow AGS-180D is a 180 gallon aboveground used oil storage system for repair shops, quick lube bays and fleet garages. A double wall steel tank holds the oil, and an air diaphragm pump moves it in from portable drains, so nobody has to carry or pour waste oil by hand. The workbench-style tank stands 40 in tall.
Key features
- UL listed double wall steel tank built to UL 142, with 110% secondary containment

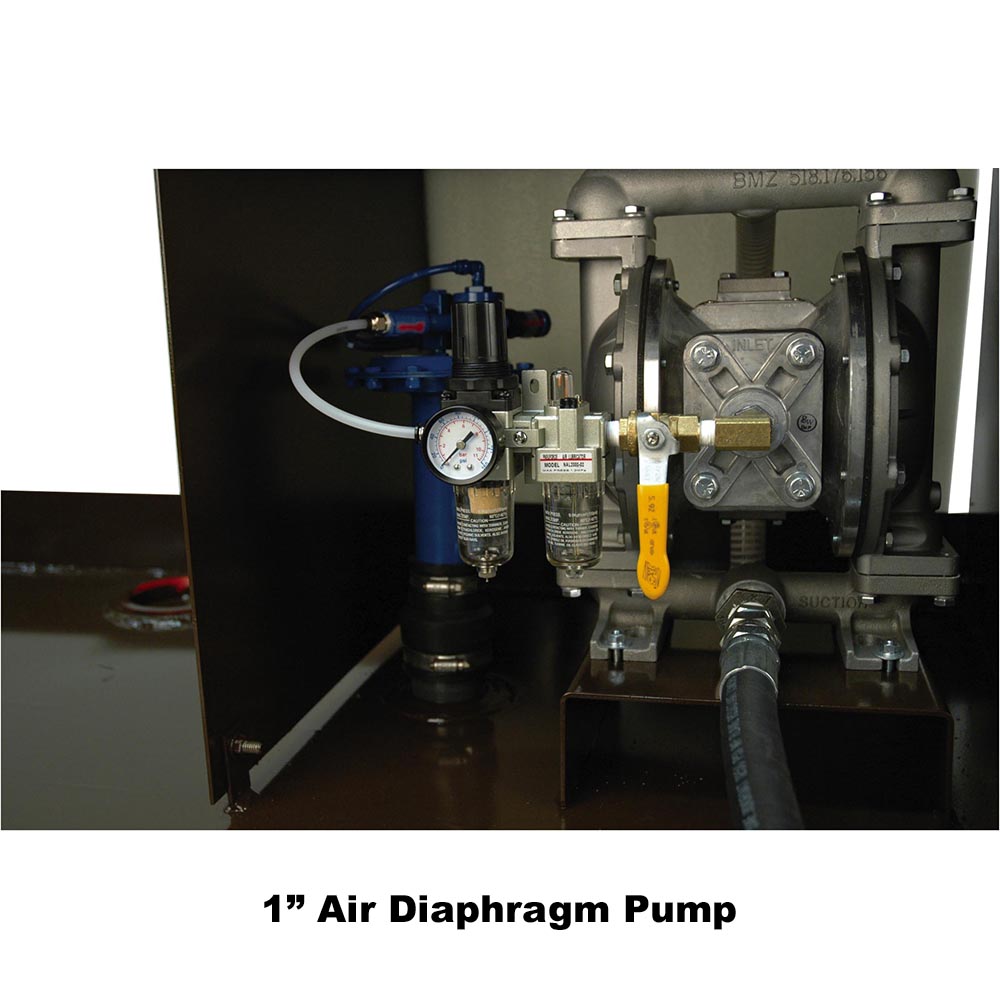

- UL listed 1 inch air-operated diaphragm pump rated at 30 GPM

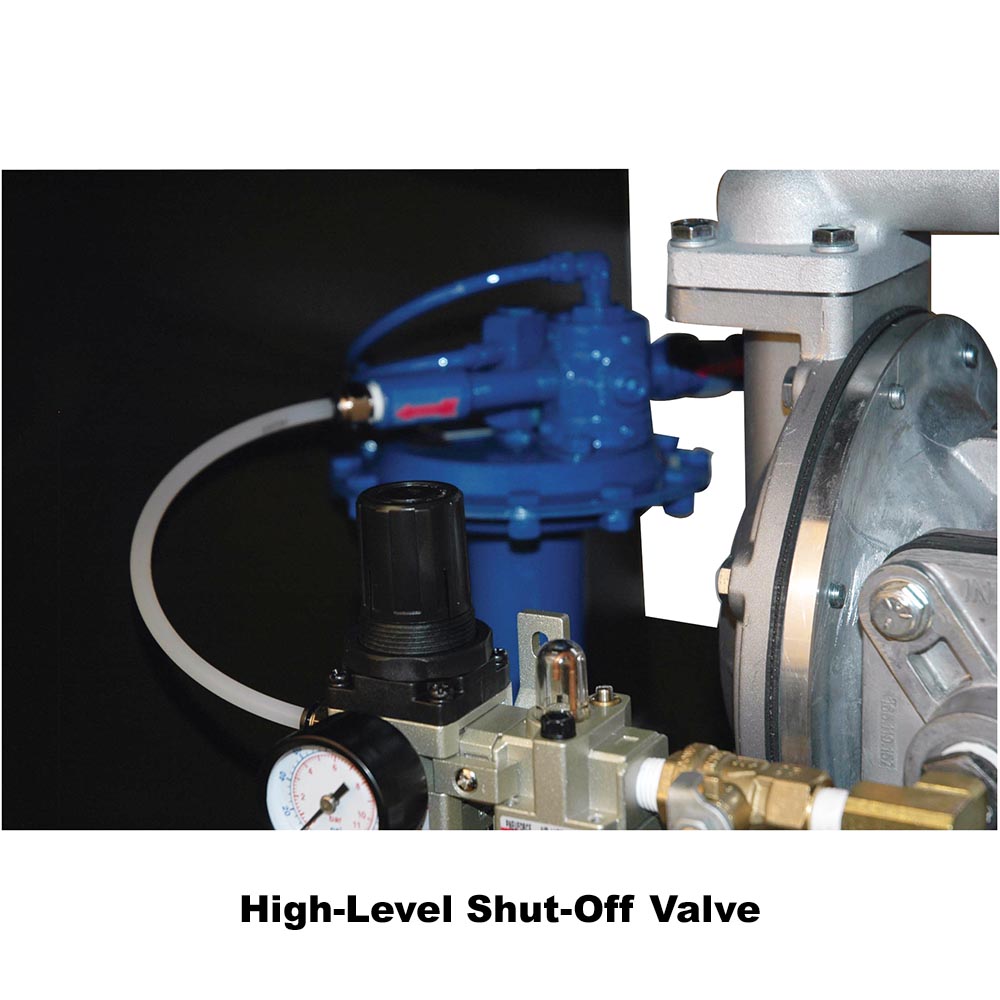

- Automatic shut-off stops the pump before the tank overfills
- 3/4 inch x 10 ft suction hose with quick-connect coupler

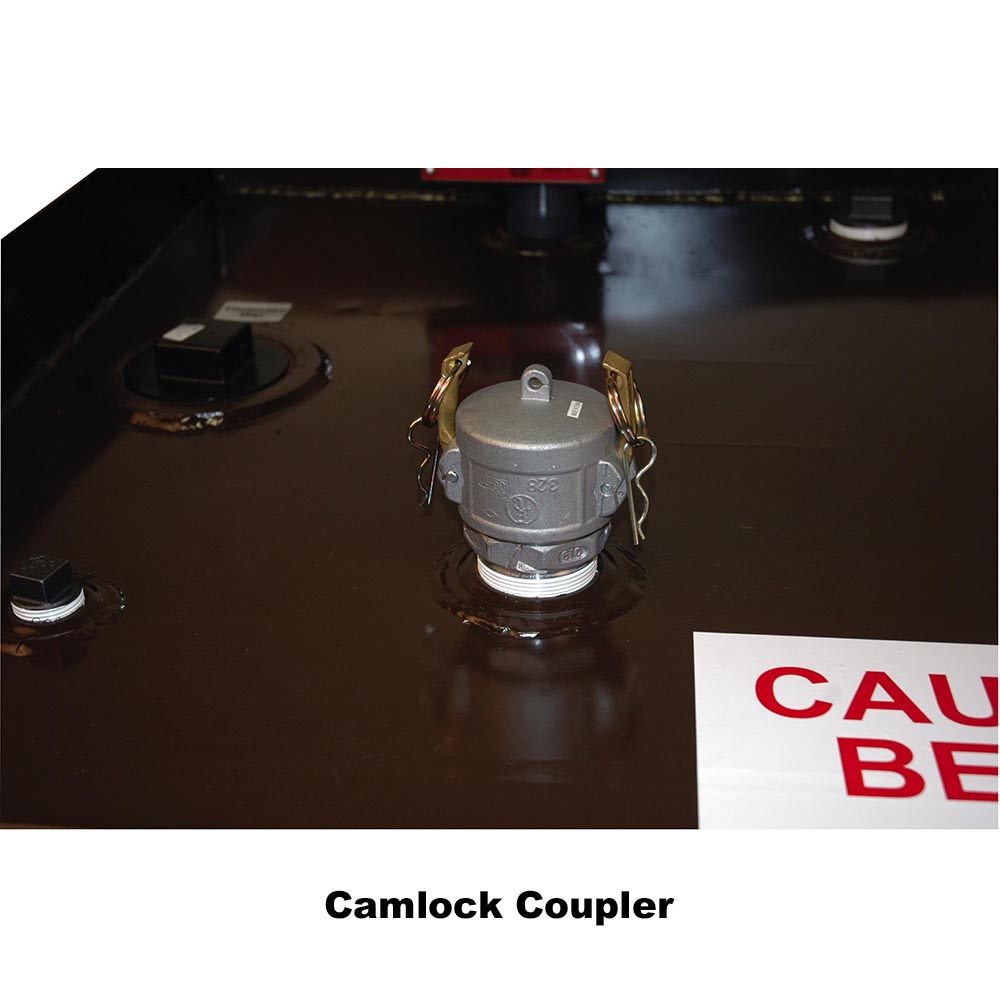

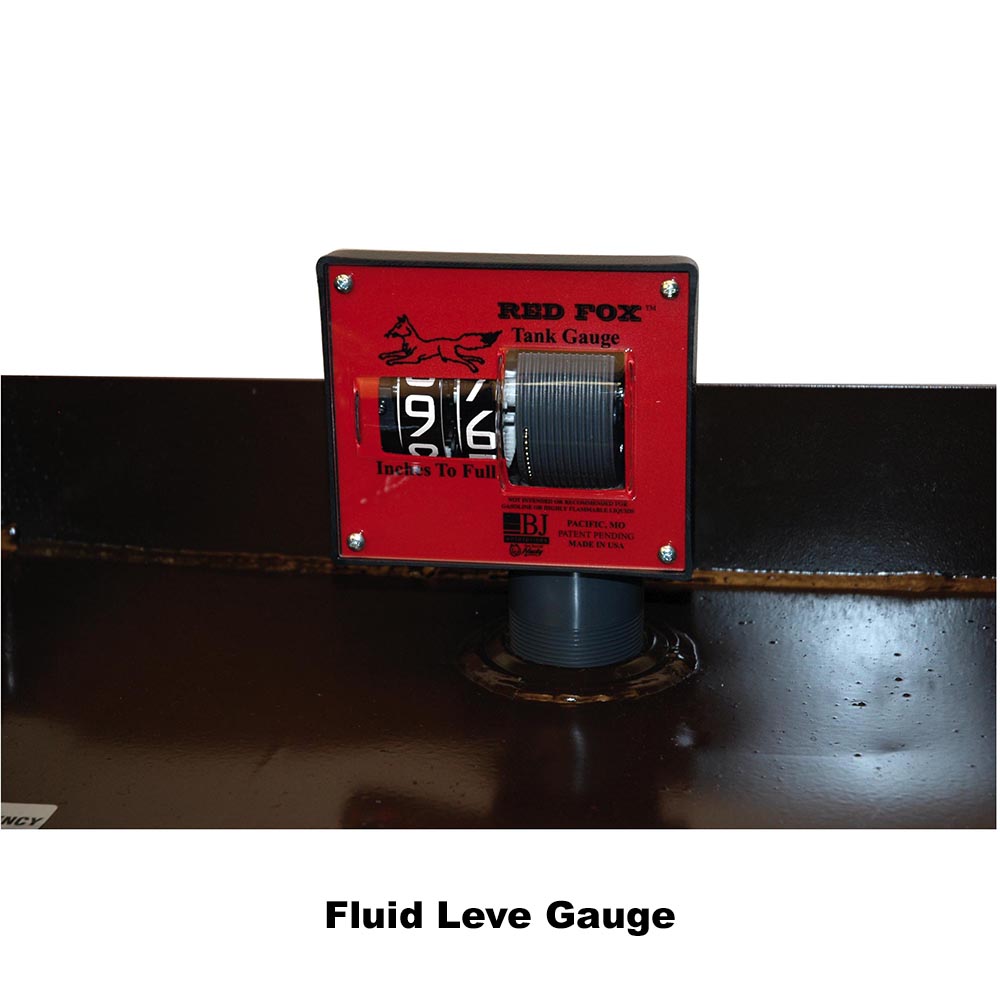

- 2 inch drop tube with camlock fitting and dust cover, plus air filter/regulator and level gauge
- High-gloss enamel finish and a protective cover over the pump and shut-off valve
Good to know
The pump, suction hose and fittings are included. At 56 x 28 x 40 in and about 725 lb, it ships by LTL freight and needs a pallet jack or forklift to move it into place. Many cities require a permit for used oil storage, so check with your building department or fire marshal before you install.
Specifications
| Brand | JohnDow Industries |
|---|---|
| Model / part number | AGS-180D |
| Capacity | 180 gallons |
| Wall type | Double wall |
| Listings and approvals | UL-142 |
| For use with | Used oil |
| Style | Rectangular |
| Material | Steel |
| Dimensions | 56 x 28 x 40 in |
| Weight | 725 lb |
| Pump included | Yes |
| Pump power | Air |
| Flow rate | 30 GPM |
| Hose length | 10 ft |
| Lead time | 21 business days |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Lead time is 21 business days. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
