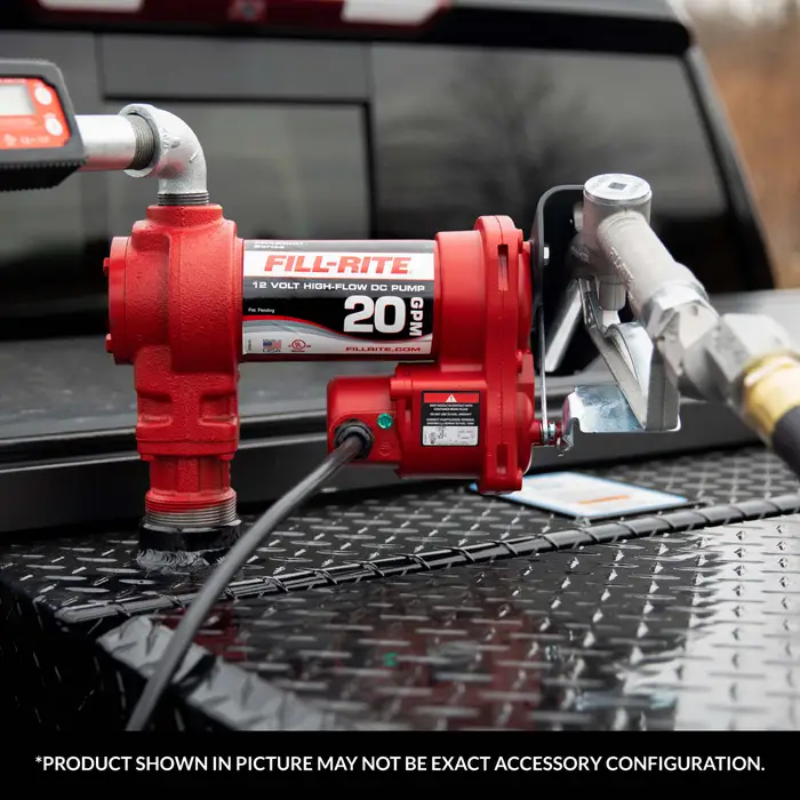

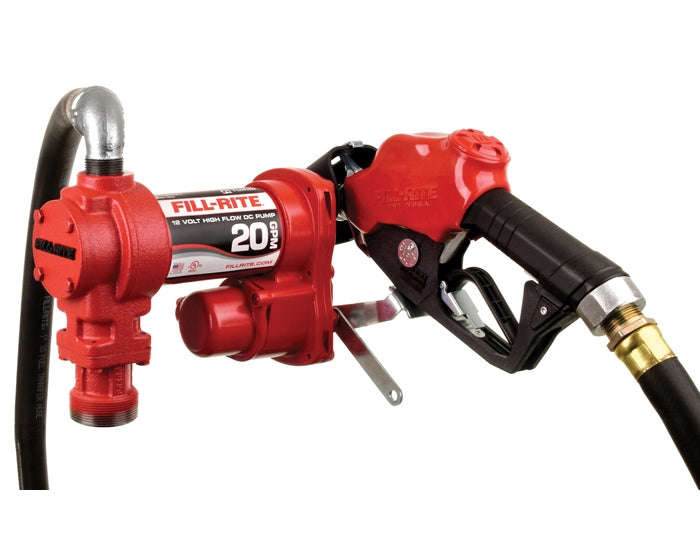

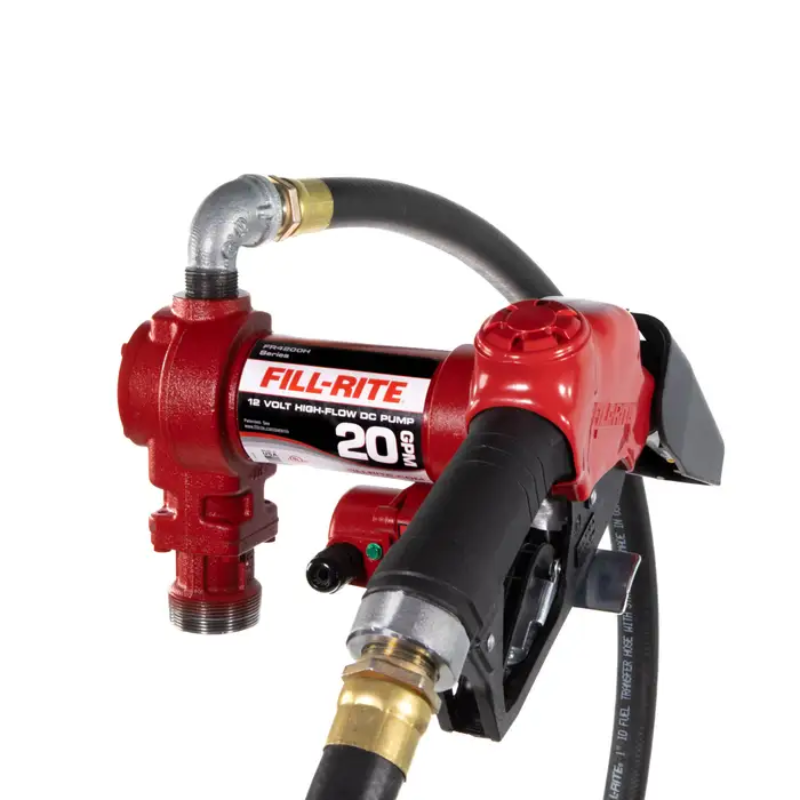

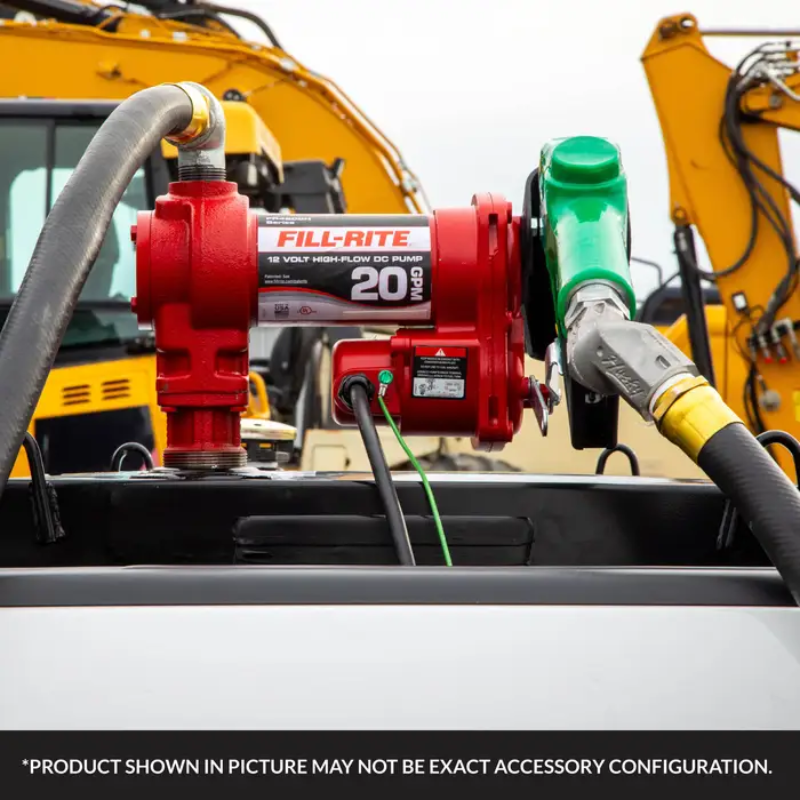

Fill-Rite FR4210HB 12V 20 GPM Transfer Tank Pump Kit with Auto Nozzle
Fill-Rite FR4210HB 12V 20 GPM Transfer Tank Pump Kit with Auto Nozzle
The Fill-Rite FR4210HB is a 12V DC transfer tank pump kit rated up to 20 GPM, supplied with an automatic shutoff nozzle. It suits pickup and service truck transfer tanks used to refuel equipment on farms and job sites. The auto nozzle shuts off when the receiving tank is full, which helps reduce spills.
Key features
- Cast iron pump body with a bronze rotor and bronze rotary vanes
- 1/4 HP, 12V DC motor with thermal overload protection
- 12 ft of 1 in hose with static wire and a 1 in automatic shutoff nozzle
- Steel suction pipe that adjusts from 20 to 34-1/2 in
- 18 ft of 12 gauge two-wire battery cable plus a 5 ft ground wire
- Built-in strainer and 2 in threaded base for tank mounting
Good to know
Pump, hose, nozzle, suction pipe and wiring come in the kit. The listing rates it for diesel, gasoline, kerosene, gasoline blends up to E15 and biodiesel up to B20. No meter is included. Check that your transfer tank setup meets DOT and local rules.
Specifications
| Brand | Fill-Rite |
|---|---|
| Model / part number | FR4210HB |
| For use with | Diesel, Gasoline, Biodiesel, Kerosene |
| Style | Pump kit |
| Material | Cast iron |
| Pump included | Yes |
| Pump power | 12V DC |
| Flow rate | 20 GPM |
| Hose length | 12 ft |
| Warranty | Limited lifetime warranty |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Need several units or a delivered quote? Request a quote.
