Blue1 400 Gallon Heated Double Wall DEF Cube with Flow Meter
Blue1 400 Gallon Heated Double Wall DEF Cube with Flow Meter
The Blue1 DEF Cube combines a heated double wall tank and a complete dispenser in one 400 gallon unit. Fleets, farms and equipment yards use it to store bulk DEF and fill trucks on site, including through cold weather. It arrives fully assembled and pre-wired.
Key features
- Double wall tank with integral sump; the outer tank holds 110% of the inner volume

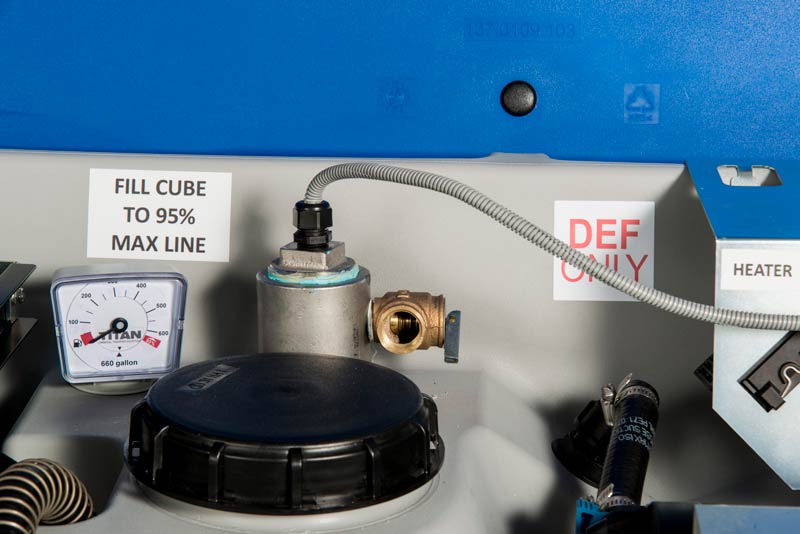

- Built-in heater to keep DEF from freezing
- TD10 115V diaphragm pump, 6 GPM, with flow meter
- 25 ft hose reel with stainless steel auto nozzle and holder
- Electronic overfill sensor, optical bund alarm and liquid level gauge
- 2 inch dry break fill port and hinged, lockable lid
Good to know
Blue1's spec table lists this cube at 396 gallons, 47 x 45 x 71 in and 451 lb empty. It ships by LTL freight with liftgate service available and needs a 115V power supply. The tank carries General Construction Inspection Approval Z-40321-510.
Specifications
| Brand | Blue1 DEF Solutions |
|---|---|
| Model / part number | 905-025-3 |
| Capacity | 400 gallons |
| Wall type | Double wall |
| Listings and approvals | General Construction Inspection Approval Z-40321-510 |
| For use with | DEF |
| Style | Cube |
| Dimensions | 47 x 45 x 71 in |
| Weight | 451 lb |
| Pump included | Yes |
| Pump power | 115V AC |
| Flow rate | 6 GPM |
| Hose length | 25 ft |
| Heated | Yes |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
