Blue1 100 Gallon Heated Portable Steel DEF Dispensing System
Blue1 100 Gallon Heated Portable Steel DEF Dispensing System

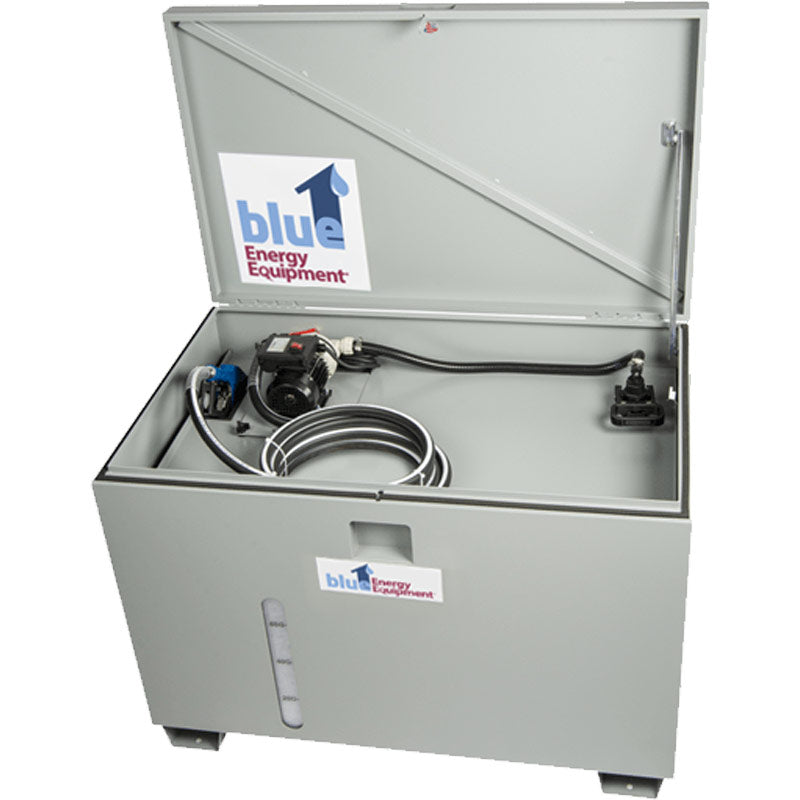

The Blue1 TPDU-M is a portable DEF storage and dispensing unit with a 100 gallon poly tank inside a lockable steel enclosure. This heated version suits service trucks, construction sites and farms that need to refuel equipment in the field during cold months. Forklift access makes it easy to load into a truck or move around a yard.
Key features
- ISO 22241 compliant polyethylene tank in a powder-coated carbon steel enclosure

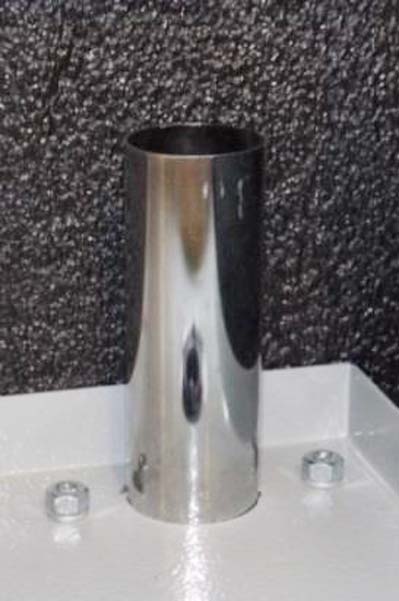

- Insulated 120V, 475 W heating system with heater pads and electronic temperature controller

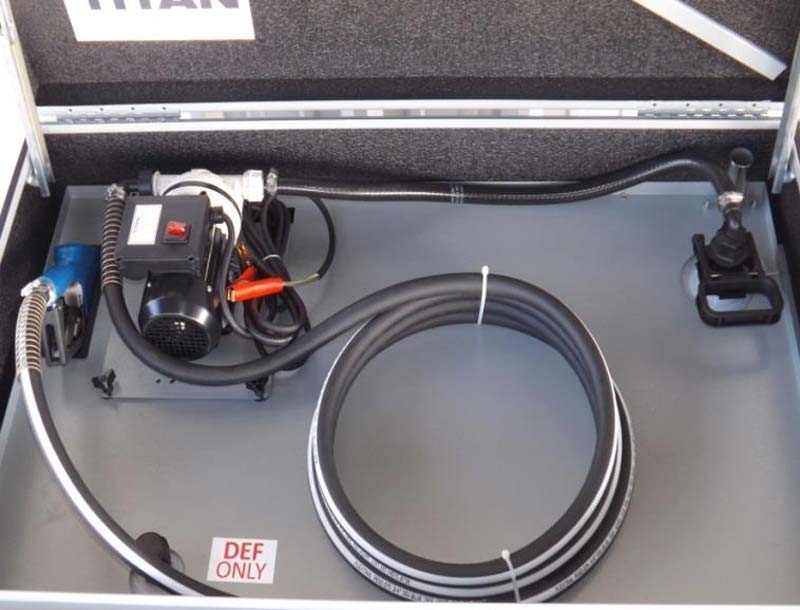

- TD12V self-priming diaphragm pump with 20 ft dispense hose and 4 ft suction hose
- Auto shut-off swivel nozzle; DEF port accepts only a DEF nozzle
- Blue1 high flow valve and high flow dispense coupler
- Hinged, tamper-resistant lockable lid and front fluid level strip
Good to know
A 20 ft industrial extension cord for the heater is included. The unit measures 48 x 30 x 34 in and weighs about 261 lb, so it ships by LTL freight with liftgate service available.
Specifications
| Brand | Blue1 DEF Solutions |
|---|---|
| Model / part number | TPDUM-904-100-4 |
| Capacity | 100 gallons |
| Listings and approvals | ISO 22241 compliant |
| For use with | DEF |
| Style | Caged tote |
| Material | Steel outer, poly inner |
| Dimensions | 48 x 30 x 34 in |
| Weight | 261 lb |
| Pump included | Yes |
| Pump power | 12V DC |
| Hose length | 20 ft |
| Heated | Yes |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
