ATI 95 Gallon Split Transfer Tank and Toolbox Combo
ATI 95 Gallon Split Transfer Tank and Toolbox Combo

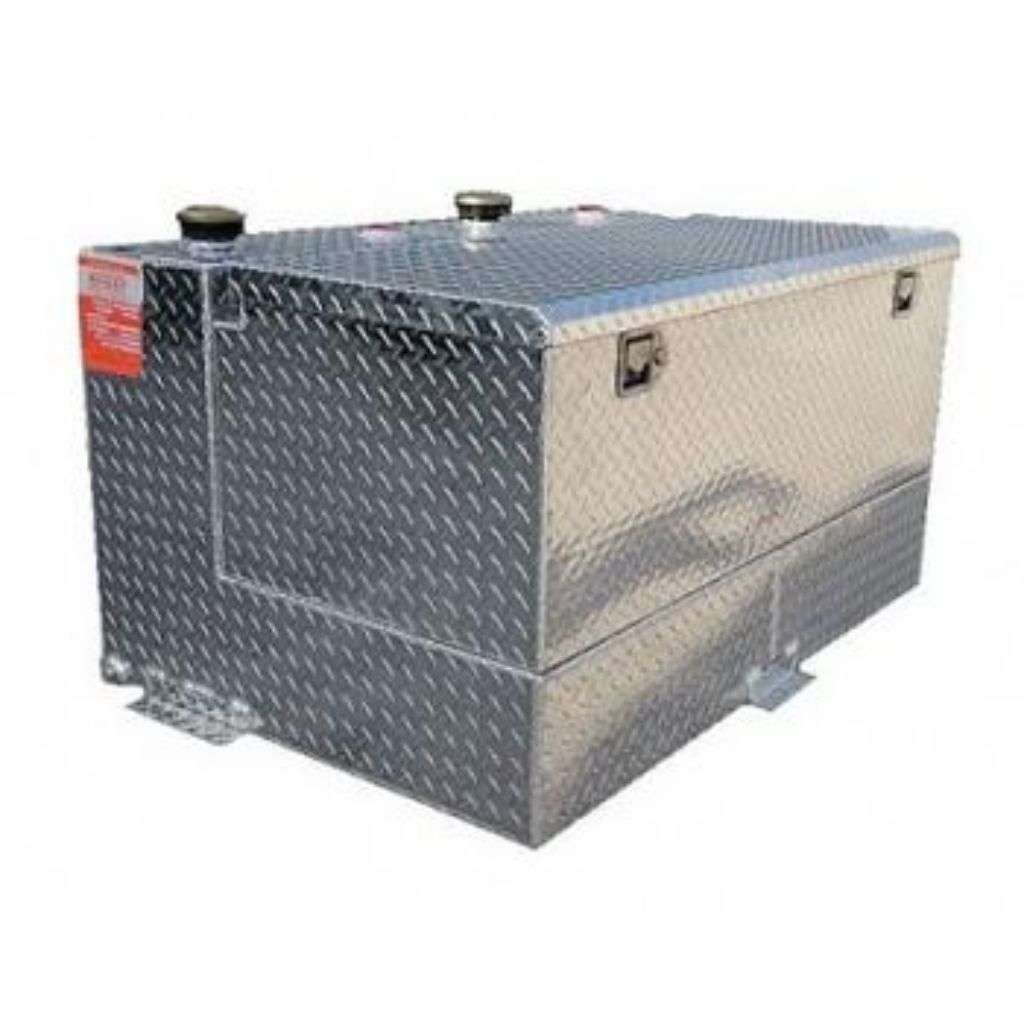

The ATI TTL95SCB pairs a 95 gallon split L-shaped transfer tank with a toolbox, all in bright diamond-tread aluminum. Two fully separated compartments let one truck carry diesel and gasoline at the same time, and the toolbox keeps tools on board. It suits service crews, farms and contractors fueling mixed equipment.
Key features
- 95 gallon total capacity split between two separate compartments
- Carries diesel and gasoline in one unit
- Diamond-plate aluminum with internal baffles
- Built-in toolbox for tools and supplies

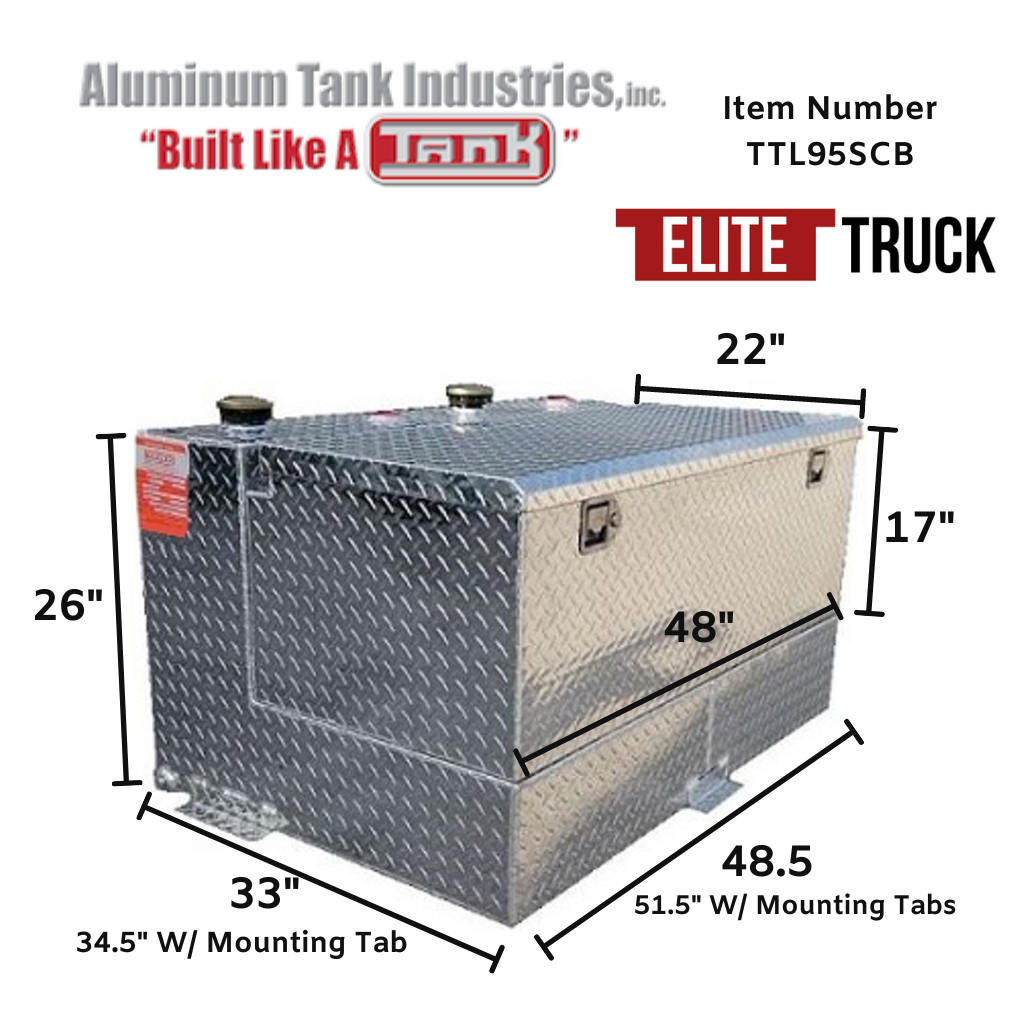

- 48.5 x 33 x 26 in overall
- Standard duty tank for transfer pumps up to 30 lb
Good to know
Pumps sold separately; ATI says a riser between the tank fitting and the pump voids the warranty. Fill each compartment to about 90 percent to allow for fuel expansion, and check connections for leaks before transport. ATI warrants the unit against defects for 1 year. Check DOT and local rules before hauling gasoline. Ships by LTL freight.
Specifications
| Brand | ATI |
|---|---|
| Model / part number | TTL95SCB |
| Capacity | 95 gallons |
| For use with | Diesel, Gasoline |
| Style | Toolbox combo |
| Material | Aluminum (diamond tread) |
| Dimensions | 48.5 x 33 x 26 in |
| Pump included | No |
| Warranty | 1-year limited warranty |
| Lead time | 3-4 weeks |
Shipping and delivery
Freight is included to business addresses in the lower 48 states. Lead time is 3-4 weeks. Liftgate delivery is available if you don't have a forklift or dock. Need several units or a delivered quote? Request a quote.
